22kw Variable Speed Rotary Screw Air Compressor with Dryer and Tank 30HP
22kw Variable Speed Rotary Screw Air Compressor with Dryer and Tank 30HP

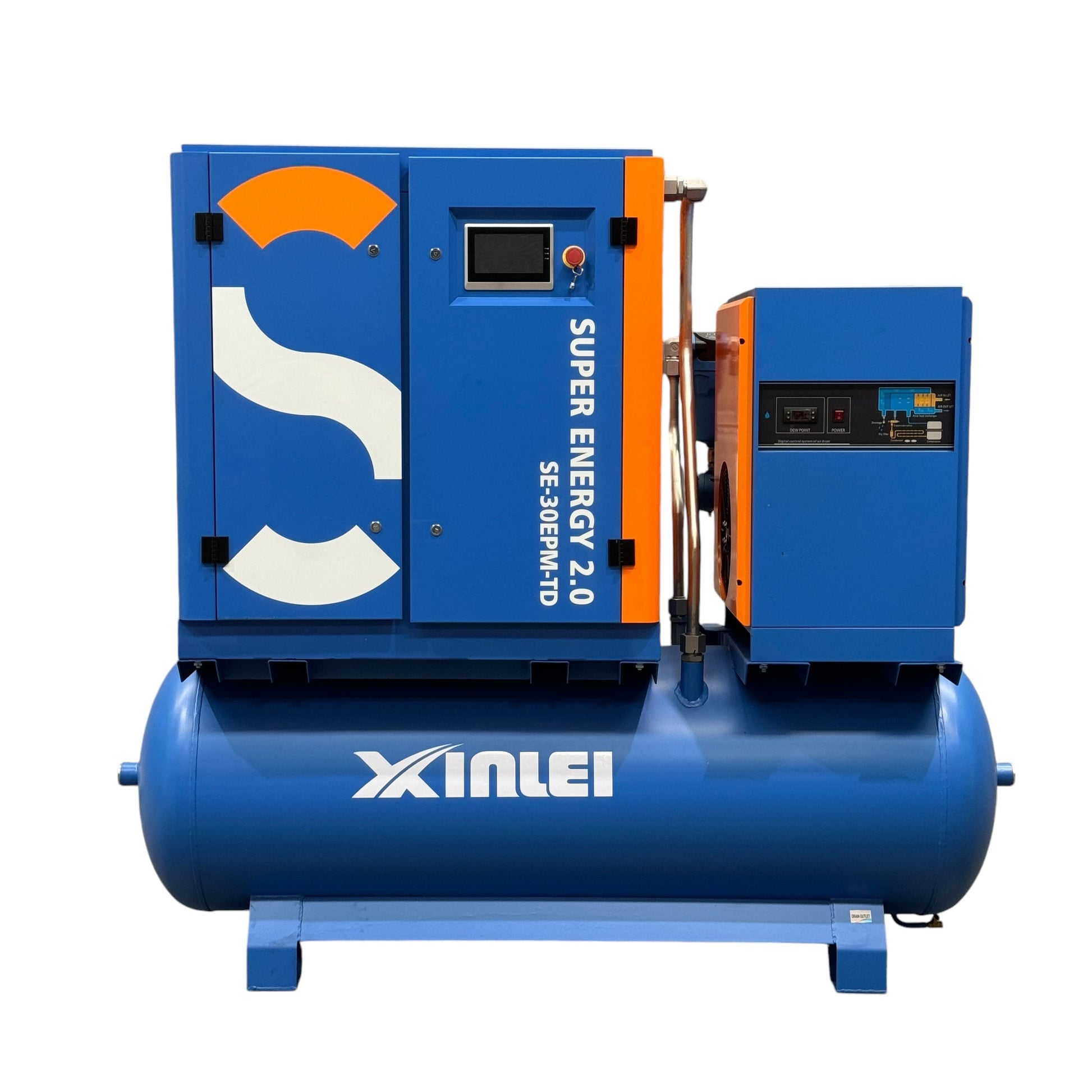

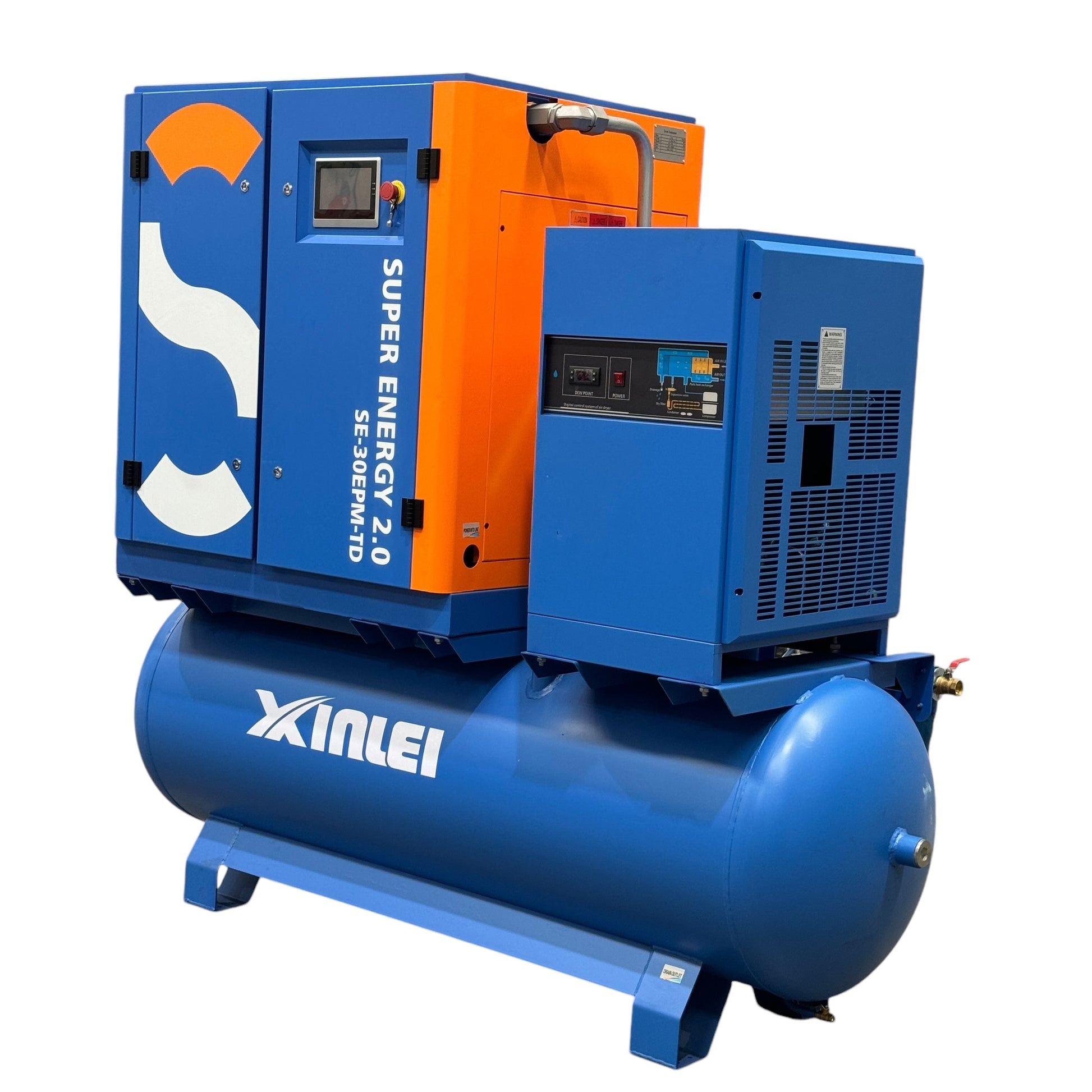

Introducing the Xinlei 22kW Permanent Magnet Variable Speed Rotary Screw Air Compressor
The Xinlei 22kW Permanent Magnet Variable Speed Rotary Screw Air Compressor is a cutting-edge solution designed for optimal efficiency and performance in industrial settings. Powered by a highly reliable 22kW motor, this unit not only delivers consistent performance but also features permanent magnet variable speed technology—offering the highest level of efficiency and control in air compression systems.
Xinlei, a trusted global leader in air compressor technology, has engineered this compressor to strike the perfect balance between performance and affordability. With a sleek, space-saving design and a 130 CFM capacity, this model is an ideal choice for businesses needing reliable, high-capacity air flow.
Key Features:
- Permanent Magnet Variable Speed Motor: Offers the highest performance by adjusting motor speed based on demand, reducing energy consumption during periods of low usage while delivering full power when needed.
- Superior to Belt-Drive Systems: Unlike belt-driven compressors, which can suffer from wear and tear over time and lead to performance inefficiencies, the direct drive of this model ensures minimal maintenance and maximized power transfer.
- Energy Savings Compared to Fixed-Speed Compressors: Unlike permanent speed compressors, which run at a constant speed regardless of demand, this variable speed model adjusts its power output, leading to significant energy savings—especially in operations with fluctuating air requirements.
- Integrated Dryer: Helps maintain air purity by reducing moisture, extending the lifespan of connected equipment.
- 4-Stage Filtration System: Includes four filters to remove particulates and contaminants, ensuring high-quality air output for sensitive applications.
- Durable Construction: Built with high-quality materials from a trusted brand, ensuring longevity and reliability.
- Simple Installation: Quick and easy to set up—just connect a 415v power supply and you're ready to go.
- Applications: Perfect for workshops, factories, and other heavy-duty environments where performance and reliability are critical.
Why Choose Permanent Magnet Variable Speed Technology?
Permanent magnet variable speed compressors offer a major efficiency boost over traditional fixed-speed or belt-drive models:
-
Energy Efficiency: By adjusting the motor speed to match air demand, variable speed technology reduces energy consumption by up to 35-50% compared to fixed-speed models, which waste energy by running constantly at maximum capacity.
-
Reduced Wear and Maintenance: Since the compressor only operates at the necessary speed, this reduces wear and tear on components, lowering maintenance costs. The direct-drive system also eliminates the need for belt replacements, common in belt-driven compressors, further reducing long-term operating costs.
-
Optimal Performance in Fluctuating Demands: In industrial settings with varying air usage, a variable speed compressor is essential. Fixed-speed compressors either waste energy when air demand is low or struggle to meet high demand peaks, while variable speed units dynamically adjust to ensure you’re never wasting energy or compromising performance.
-
Improved Reliability: Permanent magnet motors are known for their high-efficiency conversion of electrical to mechanical energy, providing more power in a smaller package and further reducing energy loss.
Screw Compressor Technical Specifications:
- Max. Working Pressure: 8 Bar / 116 Psi
- Capacity FAD: 3.73 m³/min / 131 CFM
- Installed Motor Power: 22 kW / 30 hp
- Tank Size: 650L
- Noise Level: ≤70 dB(A)
- Weight: 630 kg
- Dimensions (LxWxH): 2200 x 1000 x 1960 mm
*FAD (Free Air Delivery) refers to the actual air flow supplied under operating conditions.
Warranty:
This unit comes with a 1-year parts warranty, ensuring peace of mind and reliable performance.
Shipping:
We offer Australia-wide shipping, or you can pick up from our warehouse in Epping, VIC.
Contact Us:
Choosing the right air compressor is essential for optimizing your operations. If you have any questions or need help selecting the best model for your needs, please contact us at (03) 8679 4512.
