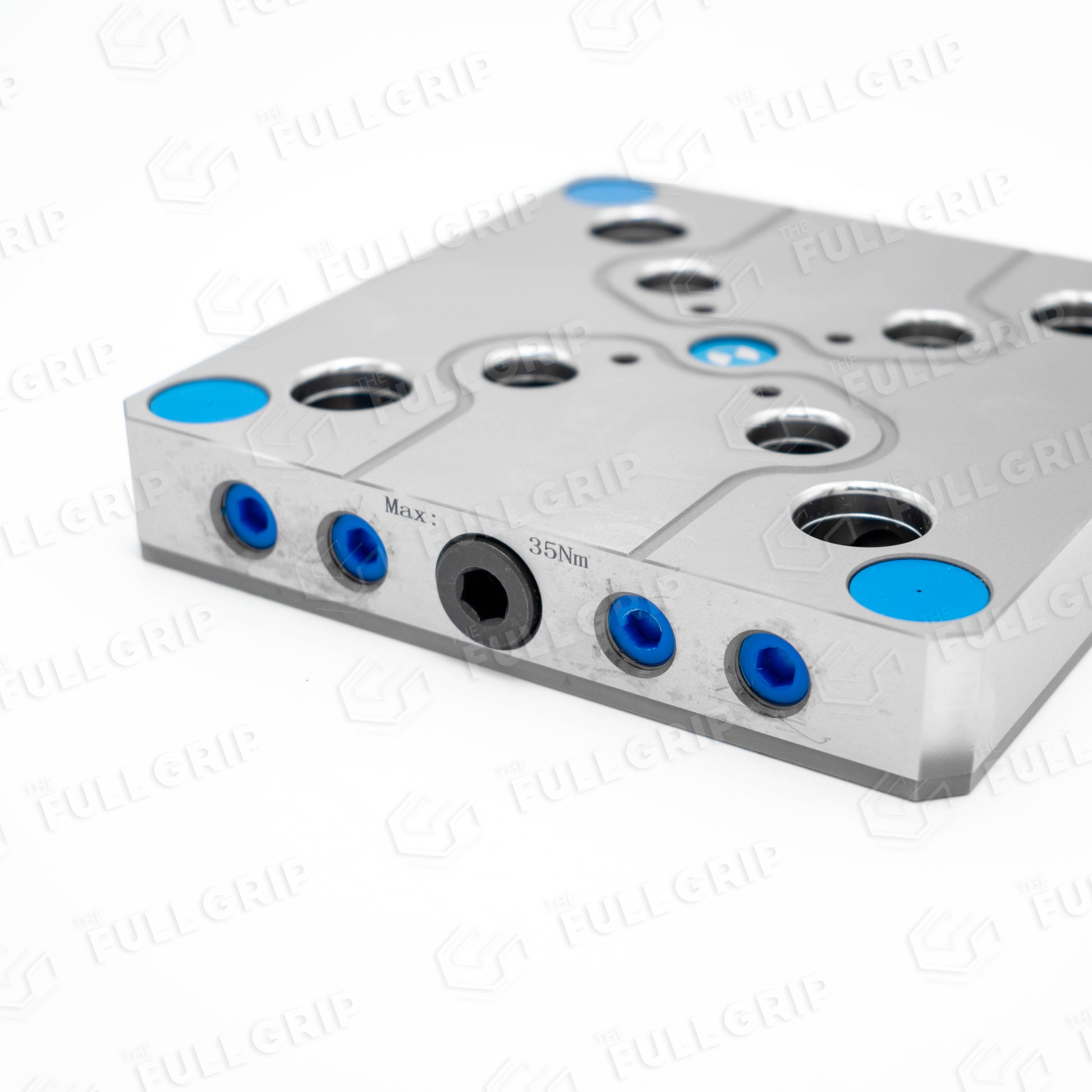

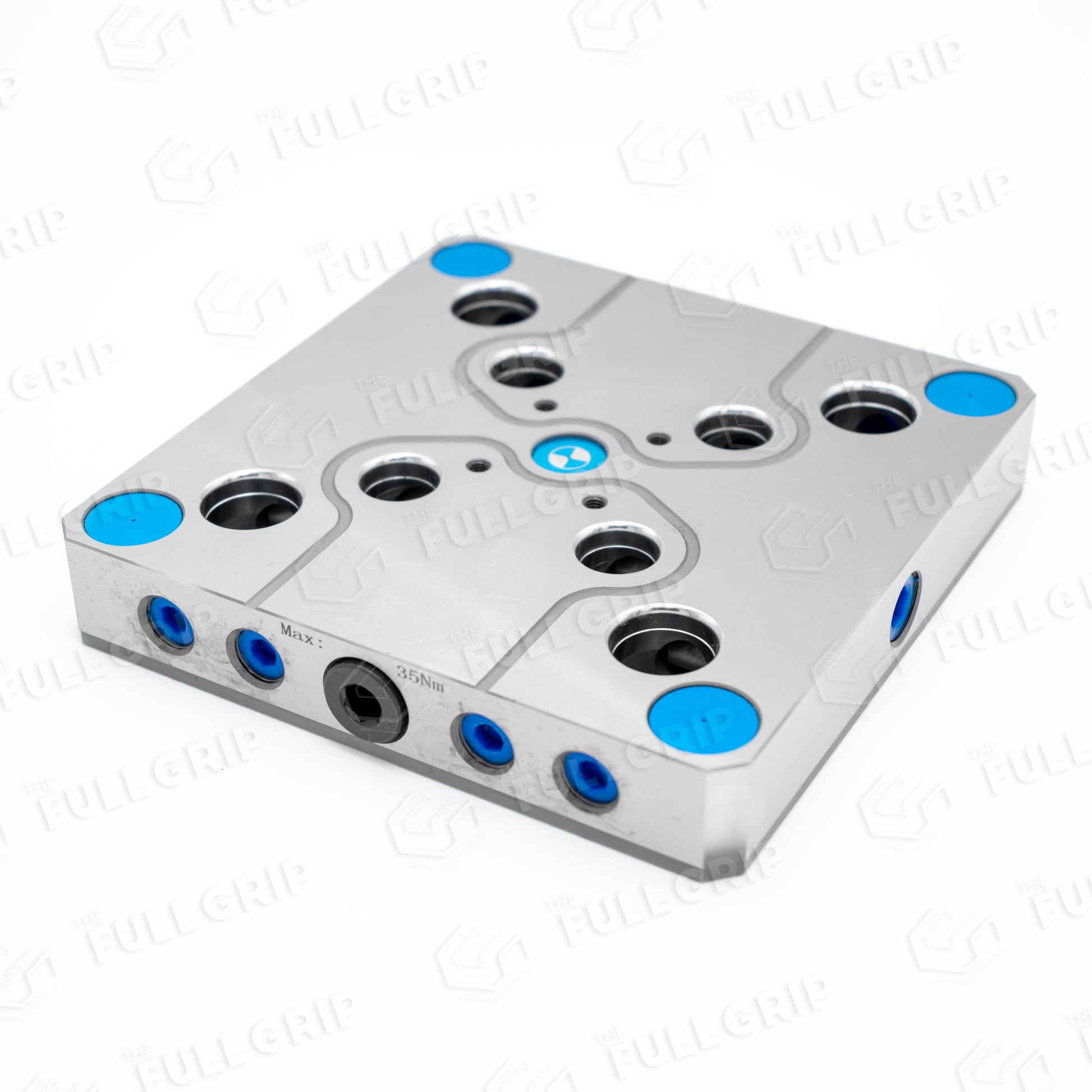

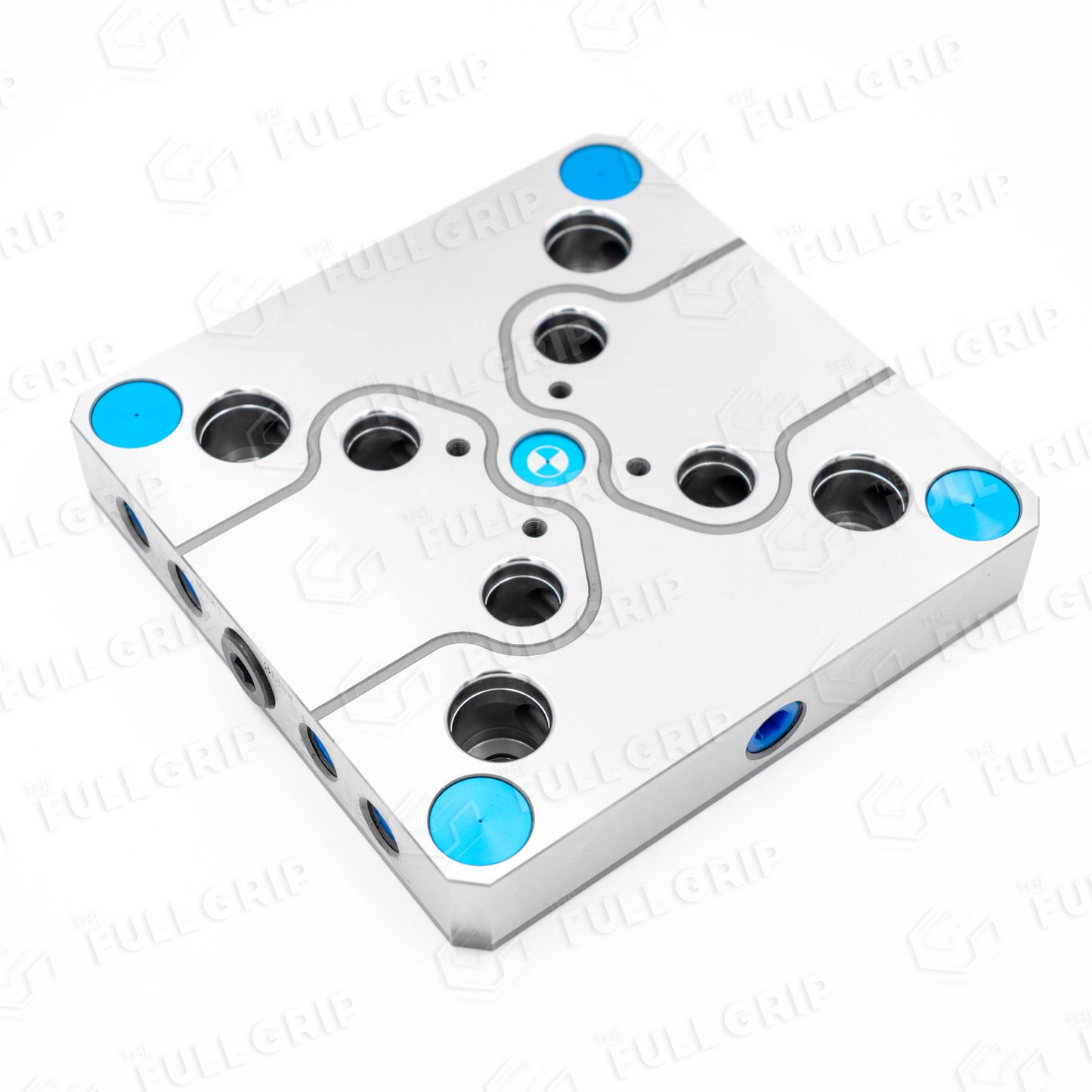

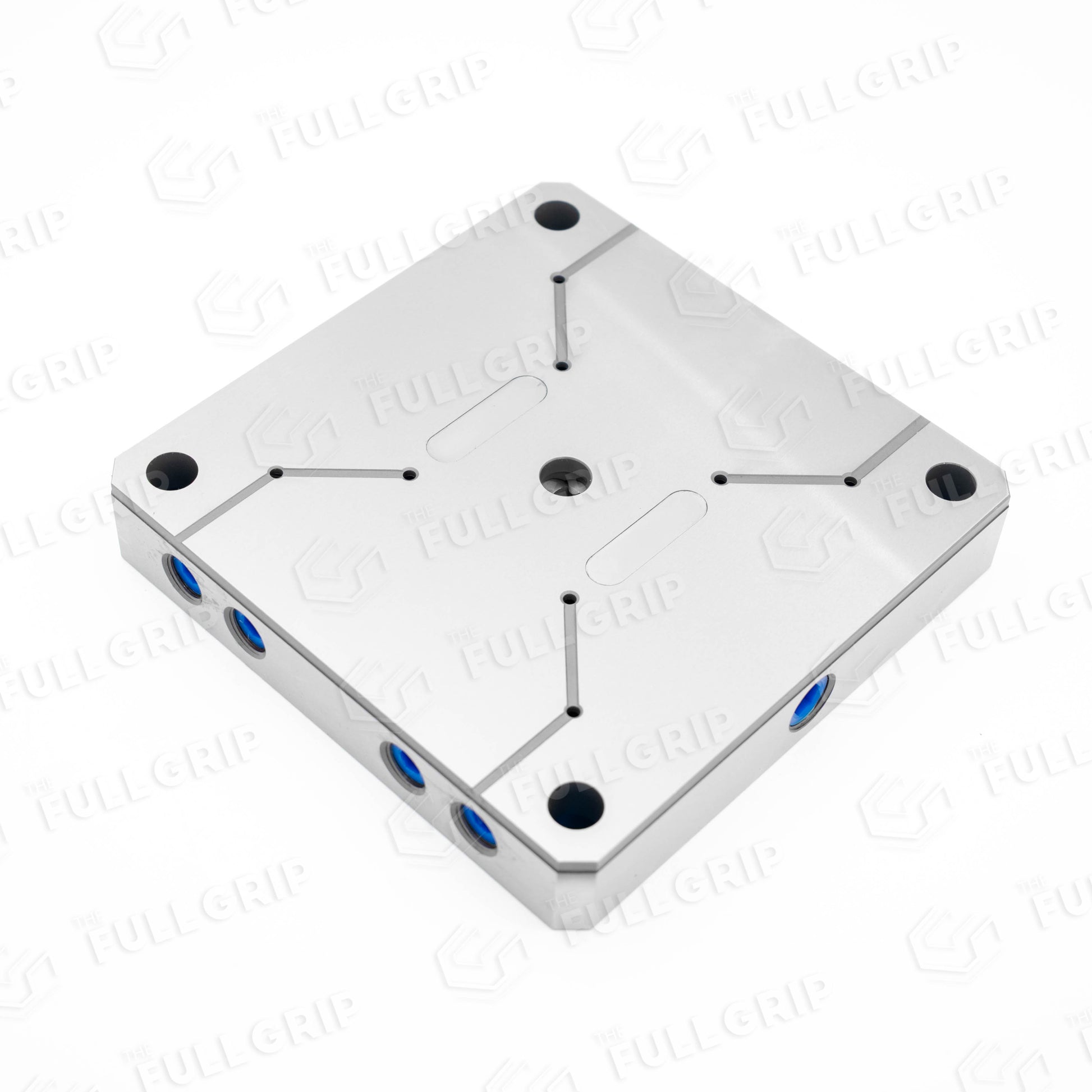

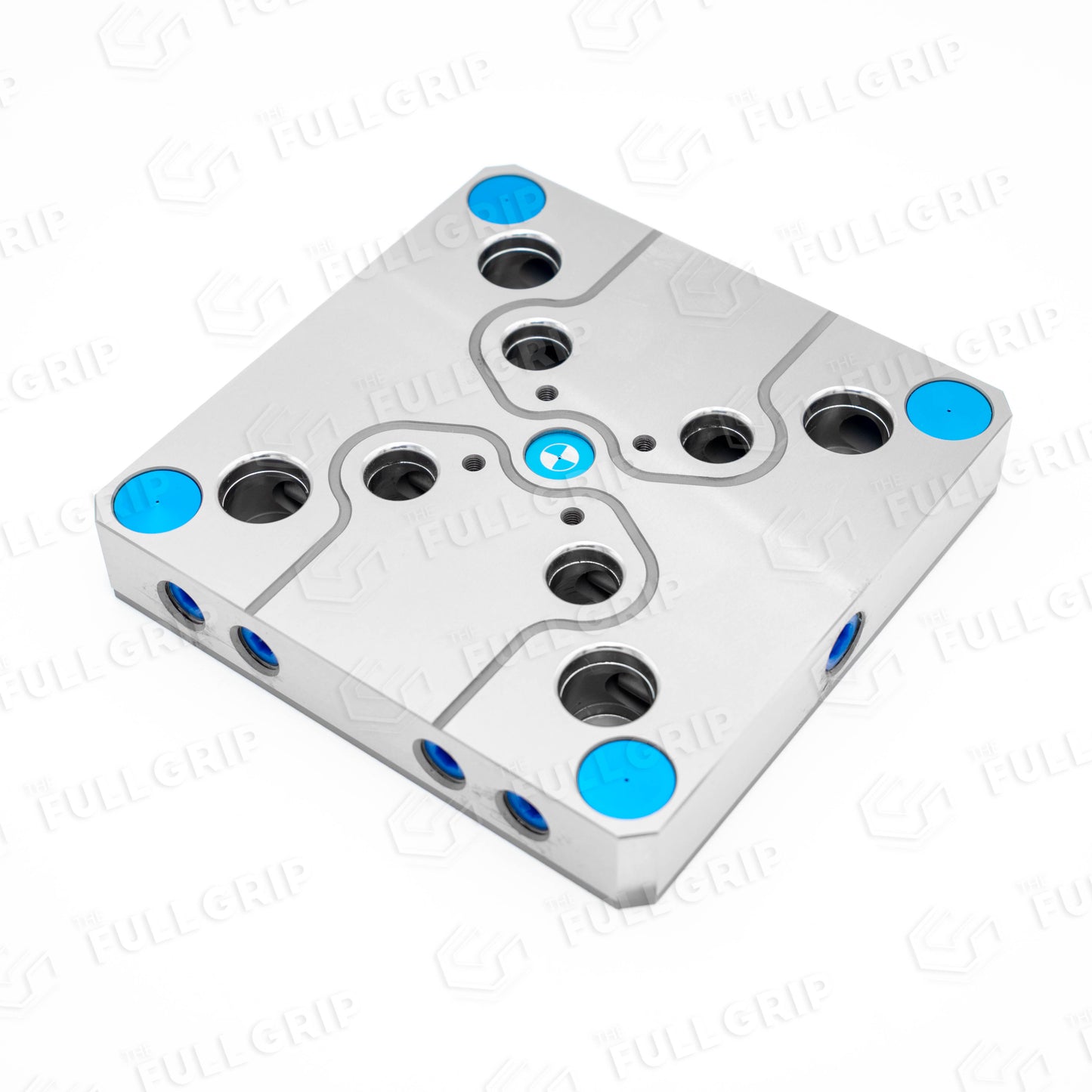

The Full Grip – 52 / 96 Combi Plate / Square Zero Point Plate

Modular Zero-Point Base Plate for Mixed-System Machining

The Full Grip – 52 / 96 Combi Plate / Square is the perfect all-rounder for workshops looking to unify their fixturing without locking into a single standard. Designed to support both 52 mm and 96 mm zero-point clamping systems in one compact, square-format base, this plate is ideal for CNC setups where versatility, rigidity, and repeatability are critical.

Whether you're switching between light-duty and heavy-duty jobs or running a hybrid fixture setup, this combi plate gives you the freedom to adapt without sacrificing speed or accuracy.

Key Features:

• Dual Zero-Point Compatibility:
  Built-in locations for both 52 mm and 96 mm pull-stud systems, giving you ultimate flexibility in fixture selection and job setup.

• Square Format Advantage:
  Balanced layout makes it easy to align on machine tables or integrate into grid plates and modular tombstones.

• Precision Machined:
  Top and bottom faces are ground to ensure parallelism, flatness, and consistent repeatability (≤ 0.005 mm).

• Durable Build:
  Milled from hardened tool steel (≥ 56 HRC), tough enough to handle frequent fixture changes, high clamping loads, and demanding shop conditions.

• Ready for Mounting:
  Supplied with pre-drilled bolt holes and alignment features for fast installation on CNC tables or subplates.

• Optimised for Mixed Workflows:
  Perfect for machine shops running varied jobs across multiple platforms — no retooling required between fixture systems.

Technical Specifications:

• Plate Shape: Square

• Zero-Point Interfaces: 52 mm and 96 mm combined

• Material: Hardened tool steel (min. 56 HRC)

• Surface Finish: Precision ground

• Repeatability: ≤ 0.005 mm

• Mounting: Bolt-down, standard hole pattern

• Applications: CNC machining centres, automation cells, tombstones, fixture libraries

DIMENSIONS

156 x 156 x 27 mm
