The Full Grip - 96 Single Round Zero Point Plate

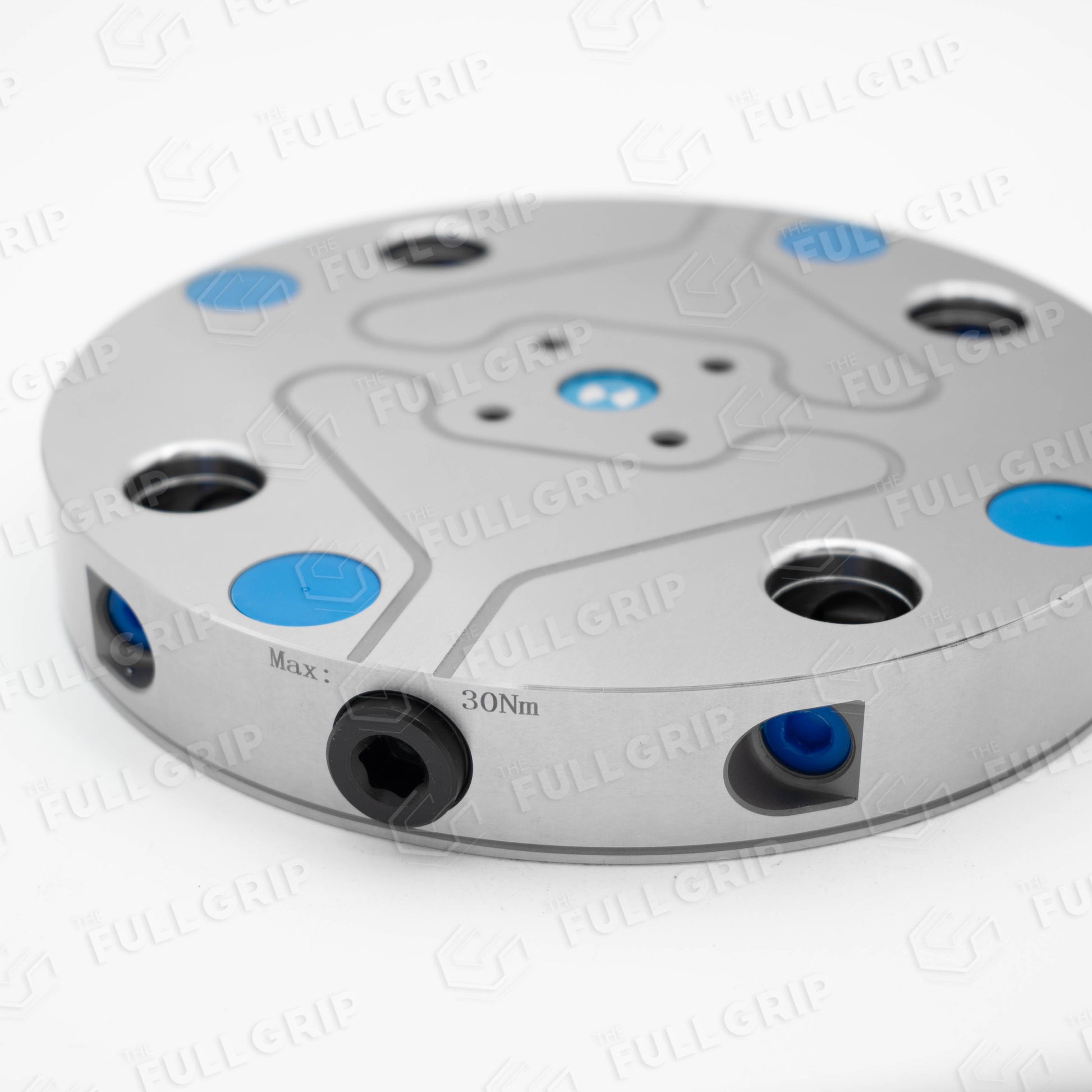

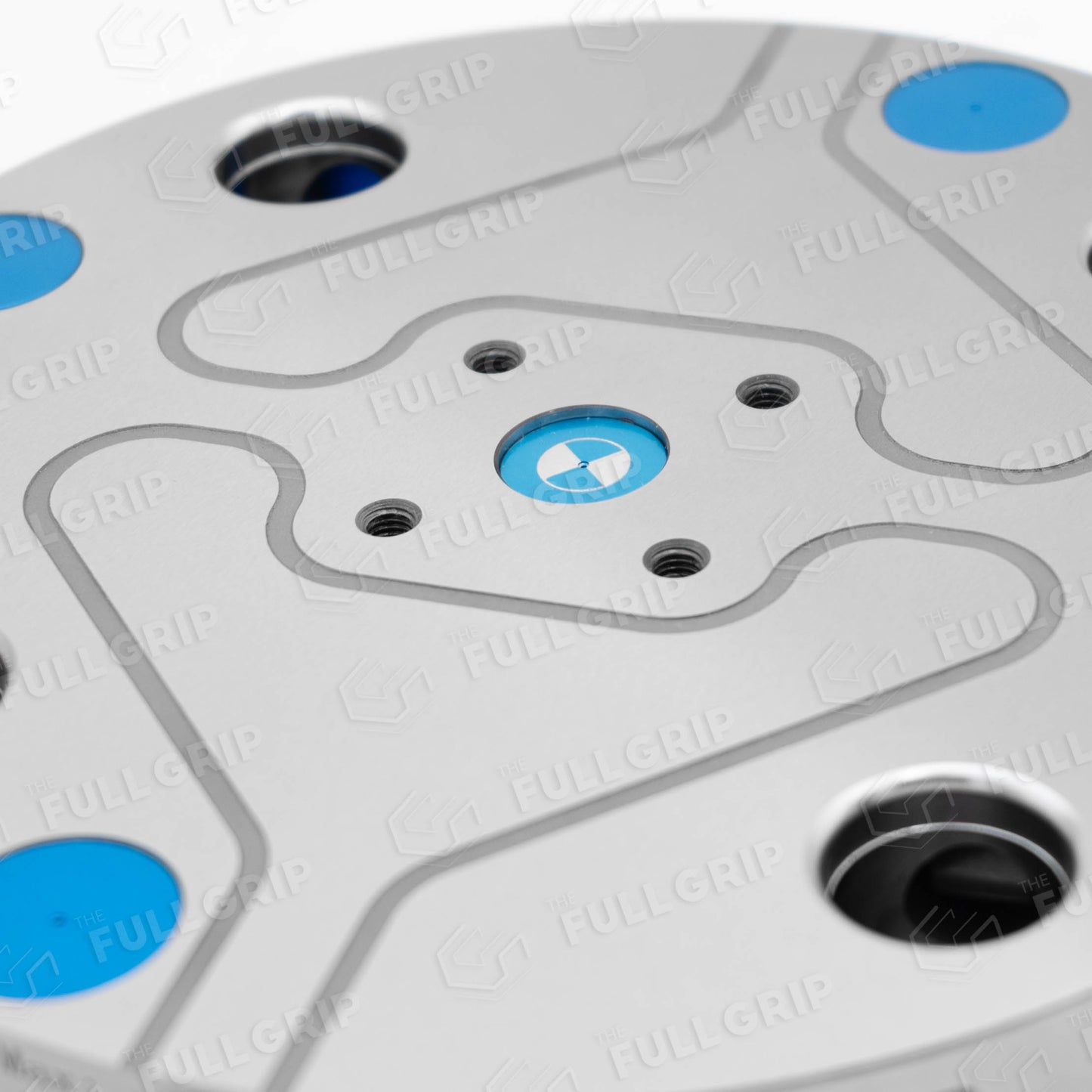

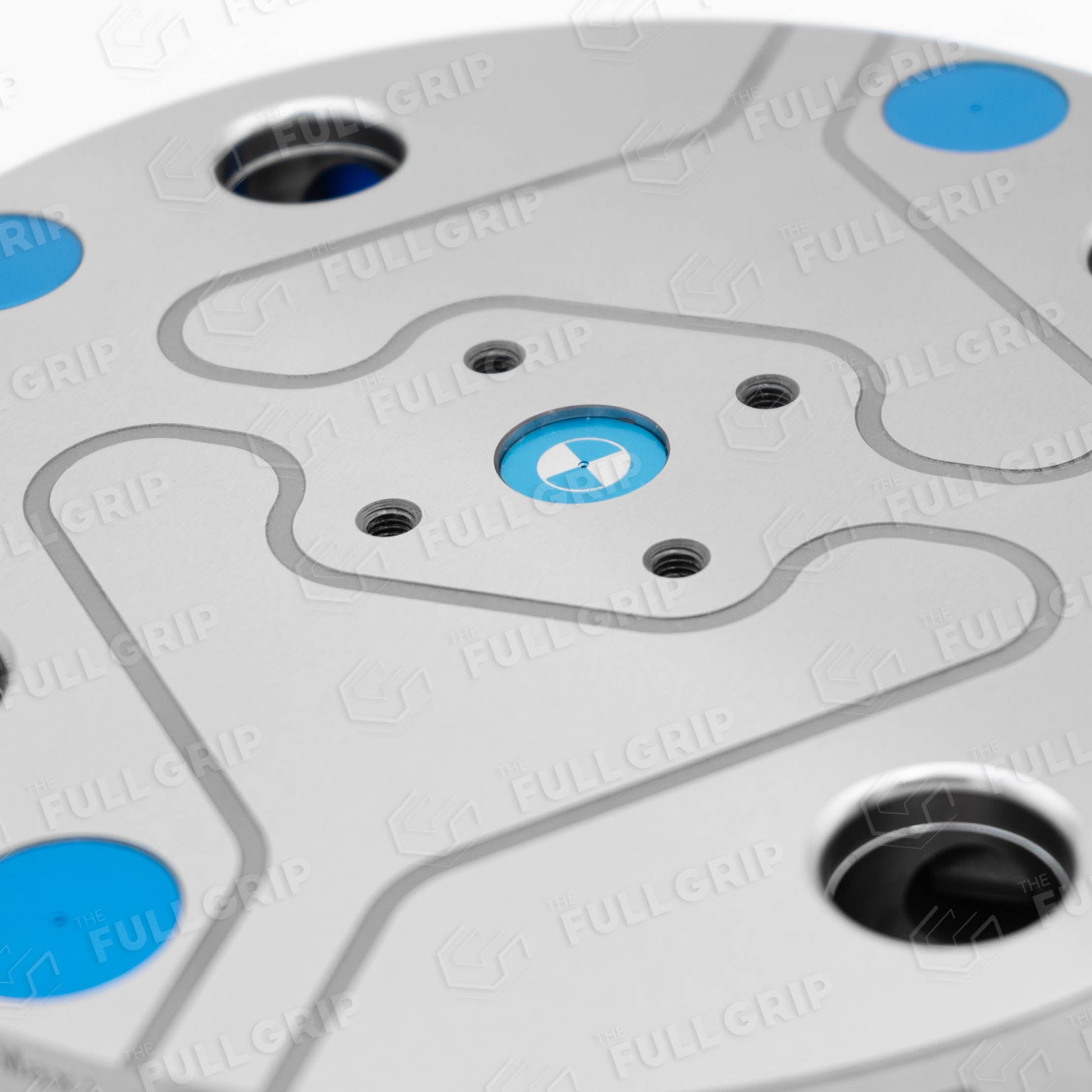

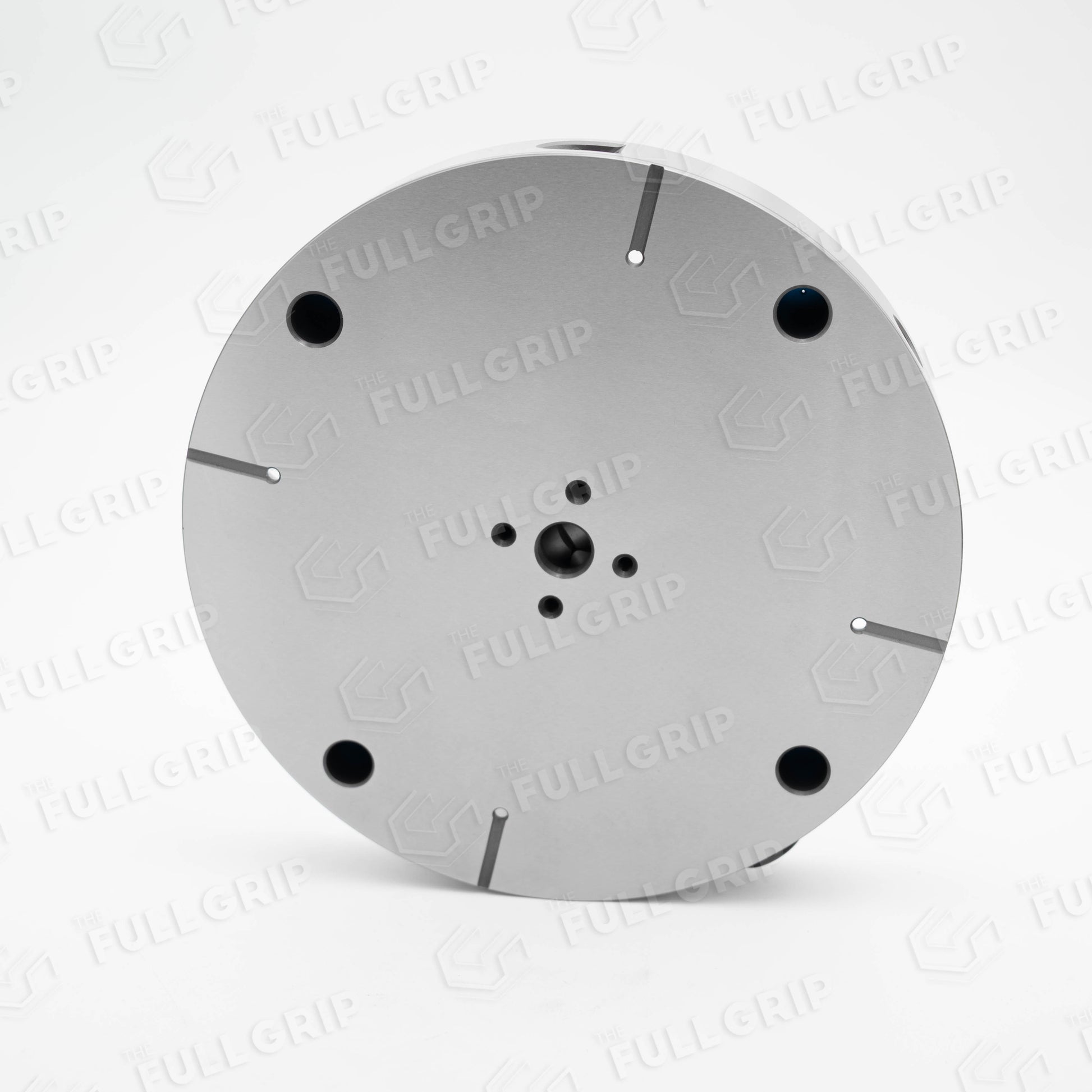

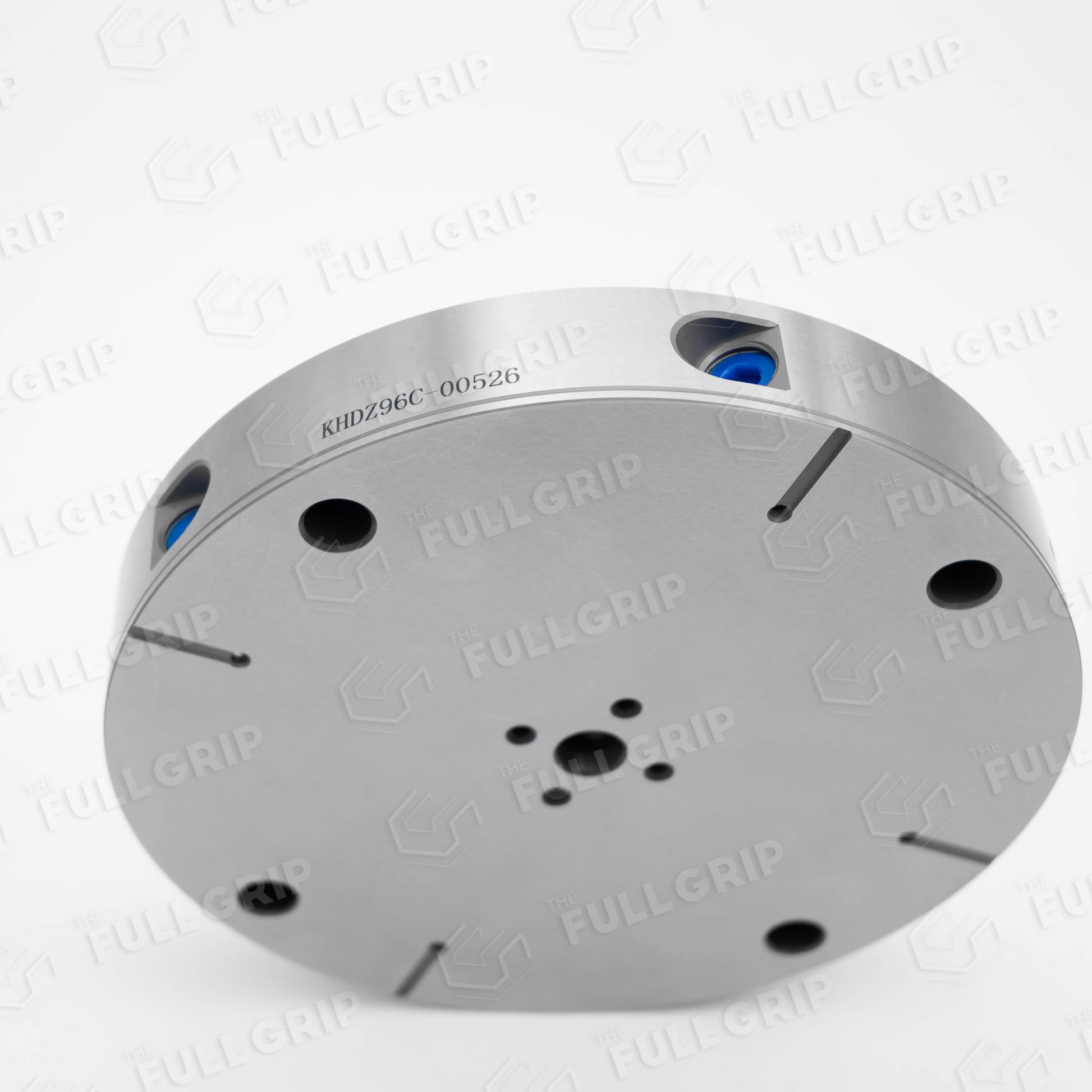

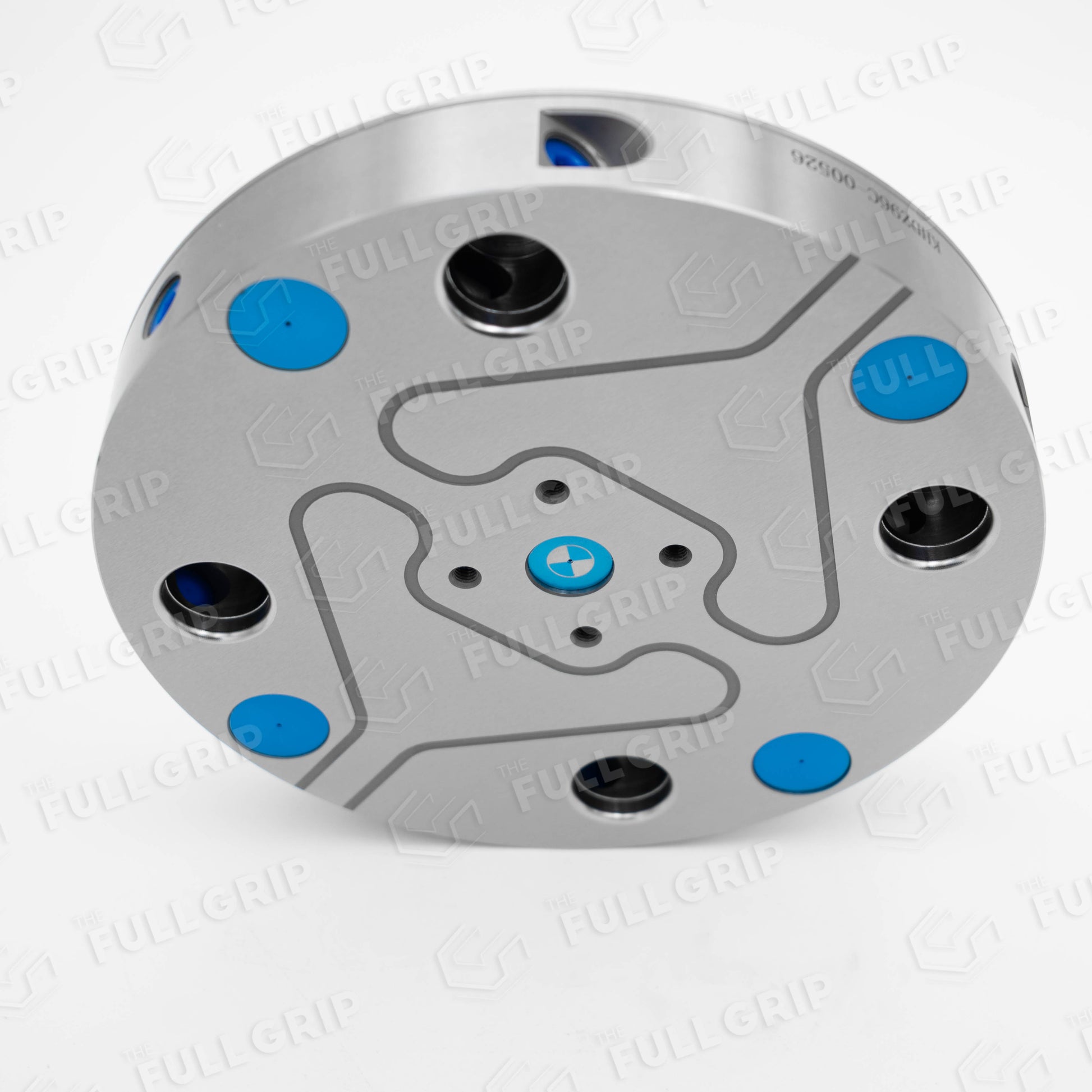

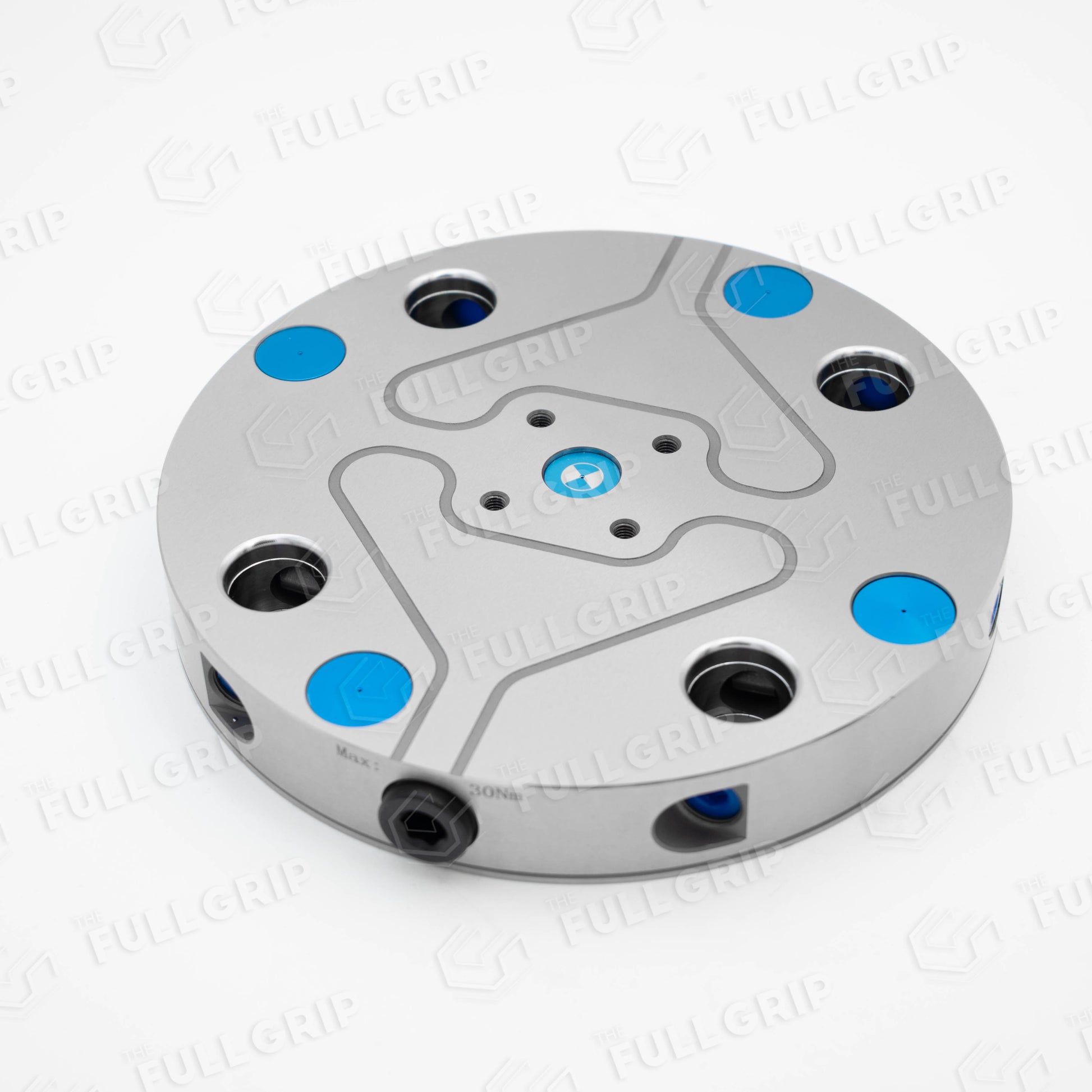

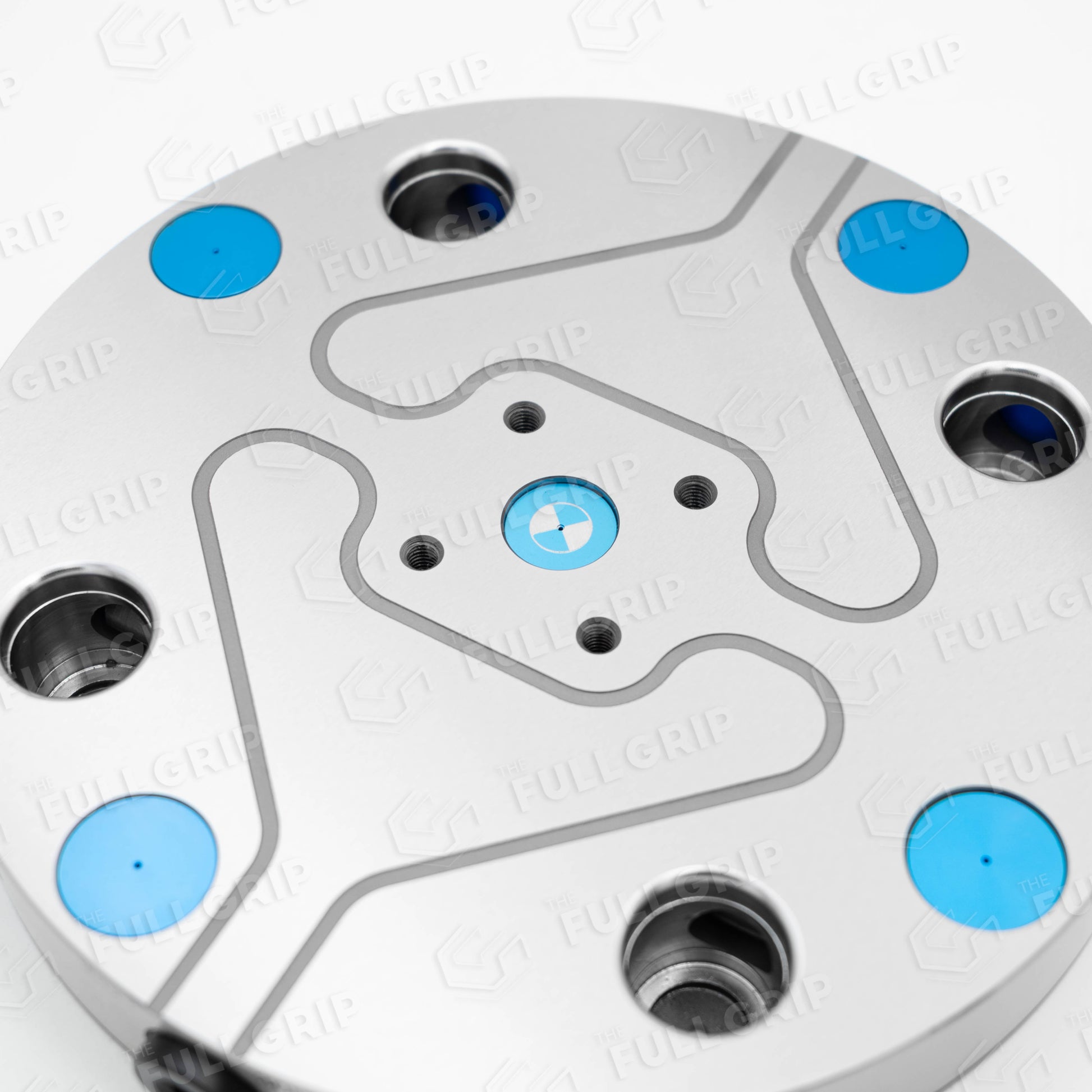

The Full Grip – 96 Round Zero Point Plate

Heavy-Duty Zero-Point Clamping Plate for Maximum Holding Power

Built for serious holding strength and unbeatable repeatability, The Full Grip – 96 Round Plate is a high-performance zero-point clamping solution designed for demanding CNC environments. Whether you're machining large workpieces or running aggressive cuts, this round plate delivers full-surface contact and rock-solid rigidity – every time.

Engineered around the 96 mm zero-point standard, The Full Grip integrates seamlessly into modular fixture setups or palletised systems. With its circular profile, it’s perfect for rotary tables, 5-axis machining centres, or any application where space and accessibility matter.

Key Features:

• Massive Clamping Force:
  Designed to maximise surface contact and holding stability for heavier components and high-torque operations.

• 96 mm Zero-Point Interface:
  Industry-standard layout ensures full compatibility with existing 96 mm pull-stud systems and automation setups.

• Premium Material:
  Machined from hardened tool steel (min. 56 HRC) for extreme durability and resistance to wear, impact, and repeated loading.

• Precision Machined Surfaces:
  Top and bottom faces are precision ground for accurate, level mounting and repeatable positioning.

• Bolt-On Ready:
  Pre-drilled mounting holes for fast installation onto CNC tables, subplates, or custom jigs.

• Round Profile Advantage:
  Ideal for rotary tables, multi-axis machining, or anywhere angular clearance is critical. Clean, efficient design that maximises accessibility.

Technical Specs:

• Diameter: Varies by model (commonly 150–200 mm)

• Zero-Point Pitch: 96 mm

• Material: Hardened tool steel

• Surface Finish: Ground

• Repeatability: ≤ 0.005 mm

• Mounting Holes: Pre-drilled, bolt-down compatible

• Applications: 5-axis CNCs, rotary tables, custom fixtures, automation systems

From complex part machining to quick-change fixturing, The Full Grip – 96 Round Plate brings strength, accuracy, and efficiency together in one tough-as-nails package. Trusted by toolmakers, job shops, and advanced manufacturers who don’t compromise on quality.

Dimensions:

Ø 176 × 27 mm
