The Full Grip - Clamping Studs for Individual Adaptation, 20 mm

The Full Grip – Clamping Studs for Individual Adaptation, 20 mm

Customizable Zero-Point Studs for Precision Fixtures and Special Builds

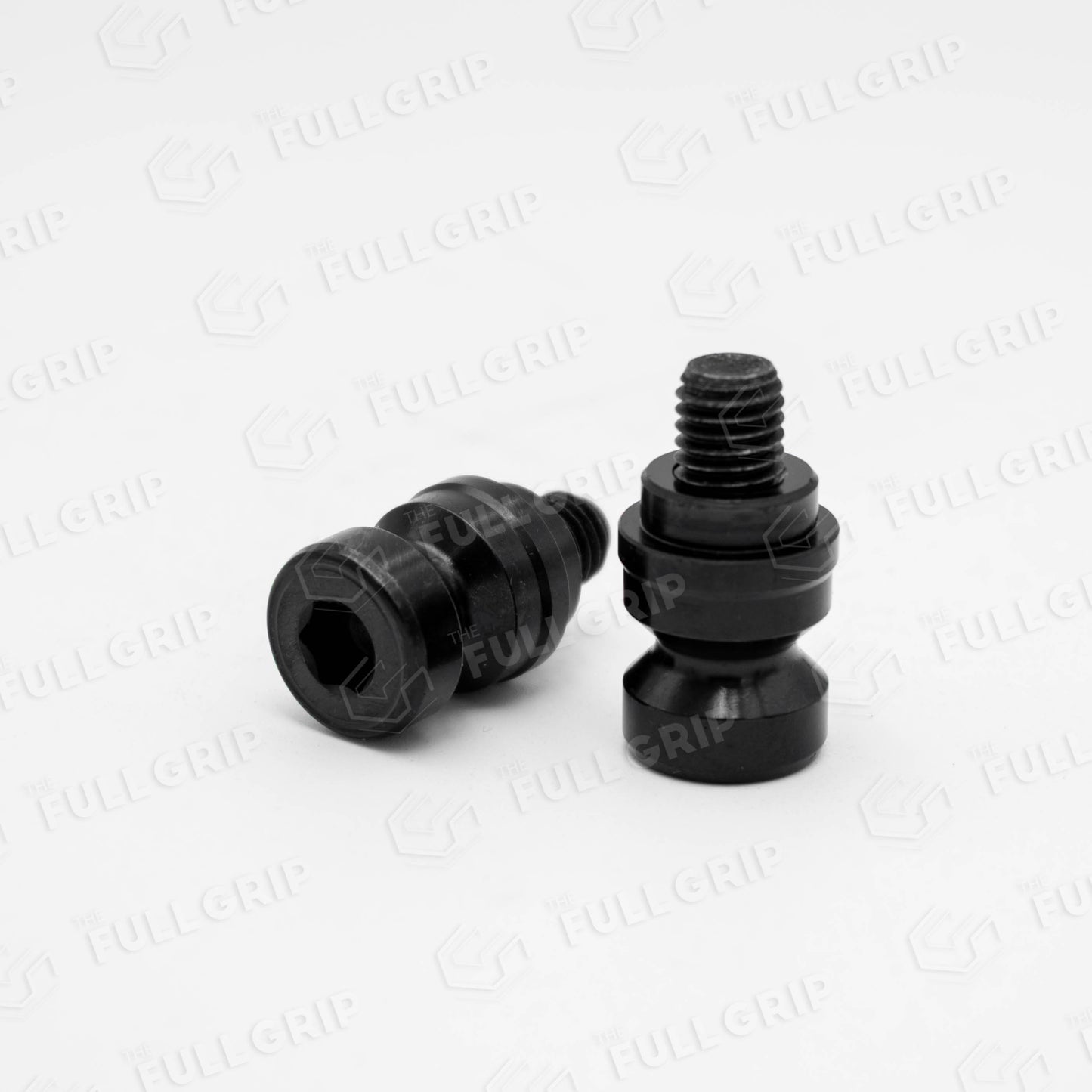

Take control of your workholding system with The Full Grip – Clamping Studs for Individual Adaptation, 20 mm. These zero-point pull studs are designed to be integrated into custom fixtures, adapter plates, or workholding solutions where off-the-shelf options just won’t cut it. With a 20 mm diameter body, these studs offer a solid balance between strength and compact form, ideal for both 52 mm and 96 mm systems.

Precision-machined and hardened for industrial use, these studs deliver the repeatability and clamping strength you expect from The Full Grip line — in a format that lets you build your setup your way.

Key Features:

• Custom Integration:
  Designed without a fixed mounting interface, allowing easy incorporation into custom base plates, adapters, or fixture blocks.

• 20 mm Diameter Body:
  Optimised for strength and versatility, making it suitable for most light- to medium-duty custom workholding applications.

• Zero-Point Compatible:
  Fully compatible with The Full Grip zero-point systems, as well as most 52 mm and 96 mm pull-back clamping bases on the market.

• Hardened Tool Steel Construction:
  Built to last with high-strength, wear-resistant steel (min. 56 HRC) for long service life and reliable engagement under load.

• High Precision Repeatability:
  Maintains positioning accuracy to within ≤ 0.005 mm, essential for high-tolerance machining and repeatable setups.

• Ideal for Fixture Builders:
  A must-have for engineers, toolmakers, and CNC specialists creating custom fixtures or modular fixturing systems.

Technical Specifications:

• Body Diameter: 20 mm

• Material: Hardened tool steel (≥ 56 HRC)

• Repeatability: ≤ 0.005 mm

• Compatible Systems: 52 mm and 96 mm zero-point clamping bases

• Mounting: Raw body – to be press-fit, welded, or mechanically fastened into custom parts

• Use Case: Custom fixtures, automation plates, modular jigs, R&D setups

DIMENSIONS

Ø 20 mm
for 96 mm spacing,

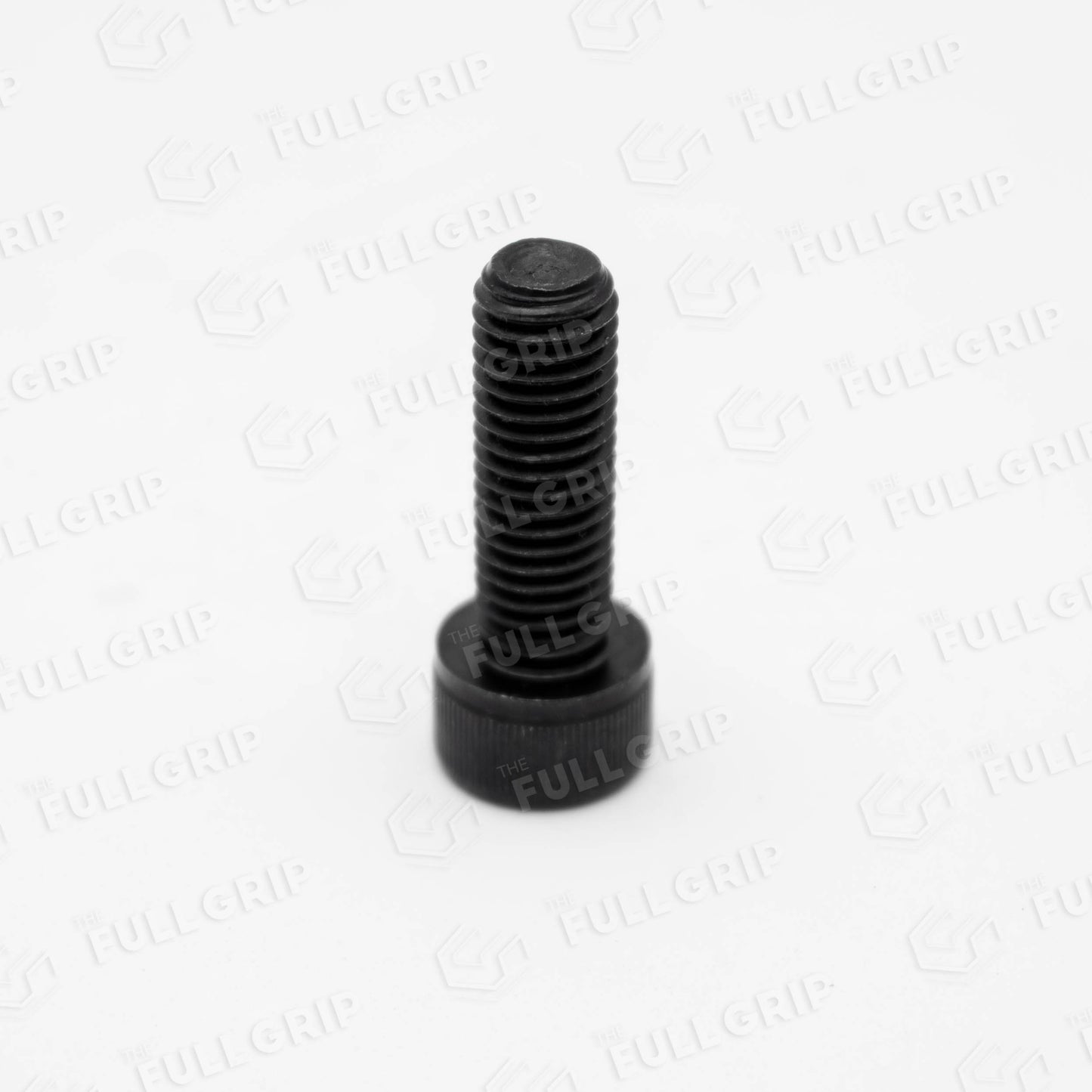

incl. M 10 × 1.5 threaded pin
