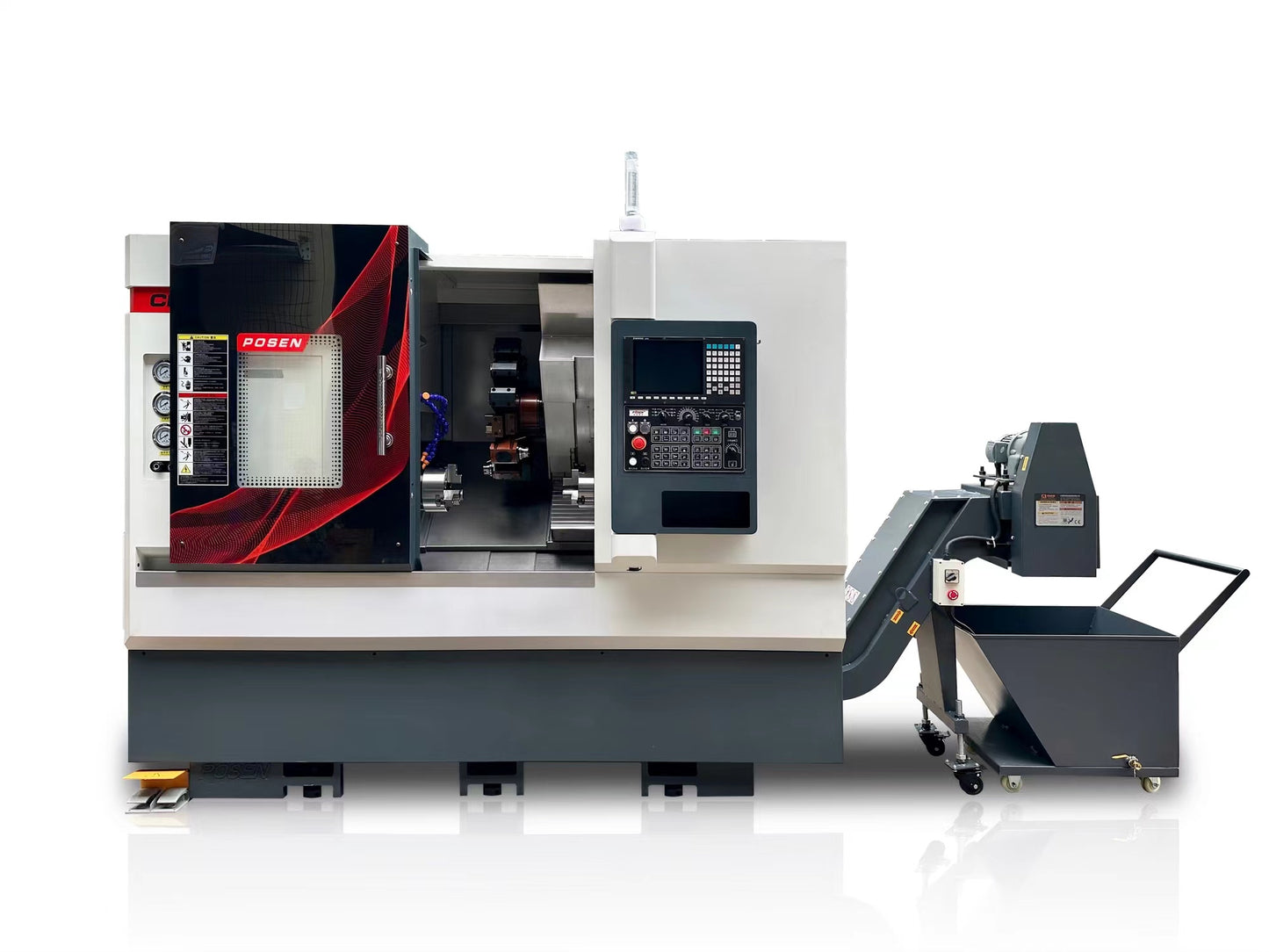

Posen CK52-500Y Dual Spindle Y Axis Mill-Turn Lathe

Introducing the Posen CK52-500Y Dual-Spindle Mill-Turn Machine, a cutting-edge CNC solution engineered for fully automated and efficient production of intricate parts. Designed with a dual-spindle system, this machine simplifies the entire manufacturing process, from raw material to finished product, with minimal operator intervention.

The process starts by feeding material into the main spindle using an optional bar feeder. The machine efficiently performs turning or milling operations on one side of the workpiece, powered by its robust spindle and 4000 r/min speed. Once the initial side is complete, the part is automatically cut off and transferred to the sub-spindle for final machining on the reverse side. This seamless transfer between spindles eliminates the need for manual handling, enhancing both production speed and precision.

Following the finishing operations, the part is collected by the optional parts catcher, ensuring smooth handling and a fully automated workflow. This streamlined process makes the CK52-500Y ideal for high-volume manufacturing in sectors like automotive, aerospace, and precision engineering.

With features such as Y-axis, live tooling, and the advanced Siemens 828D control system, the CK52-500Y is an excellent choice for manufacturers seeking to automate the production of complex parts with unmatched efficiency.

Key Features:

• Max Swing Diameter: 650 mm
• Max Cutting Length: 400 mm
• Max Cutting Diameter: 300 mm
• Main Spindle Speed: 4000 r/min (8" chuck, A2-6 taper)
• Sub-Spindle Speed: 4000 r/min (6" chuck, A2-4 taper)
• Travel:
  • X-axis: 260 mm
  • Y-axis: 500 mm
  • Z-axis: 130 mm
  • Z2-axis: 400 mm
• Turret: BMT45, 15-position live tool turret (4000 r/min)
• Control System: Siemens 828D
• Total Power Capacity: 30 KVA
• Machine Dimensions: 2850×1800×2100 mm
• Weight: 5200 kg
• Voltage: 415V AC, 50Hz

The CK52-500Y Dual-Spindle Mill-Turn Machine is fully customizable to meet your specific production needs. Along with the standard configuration, you have the option of the premium Siemens One, or alternatively Fanuc or Syntec controllers, extended bed length, and choose from a wide range of additional features and upgrades tailored to your requirements.

• Tool Measuring Arm
• Oil Skimmer
• Parts Catcher Including Conveyor
• Filter Mist
• Servo Bar Feeder
• Power tool holder (Straight)
• Power tool holder (90 Degree Double Sided)
• Collet Chucks

Contact us today to discuss your custom specifications or to schedule a visit to our Melbourne display centre where you can see the CK52-500Y in action. Let us help you find the perfect solution for your manufacturing needs!

Price advertised is for standard specification machine.

Pictures for illustration only
