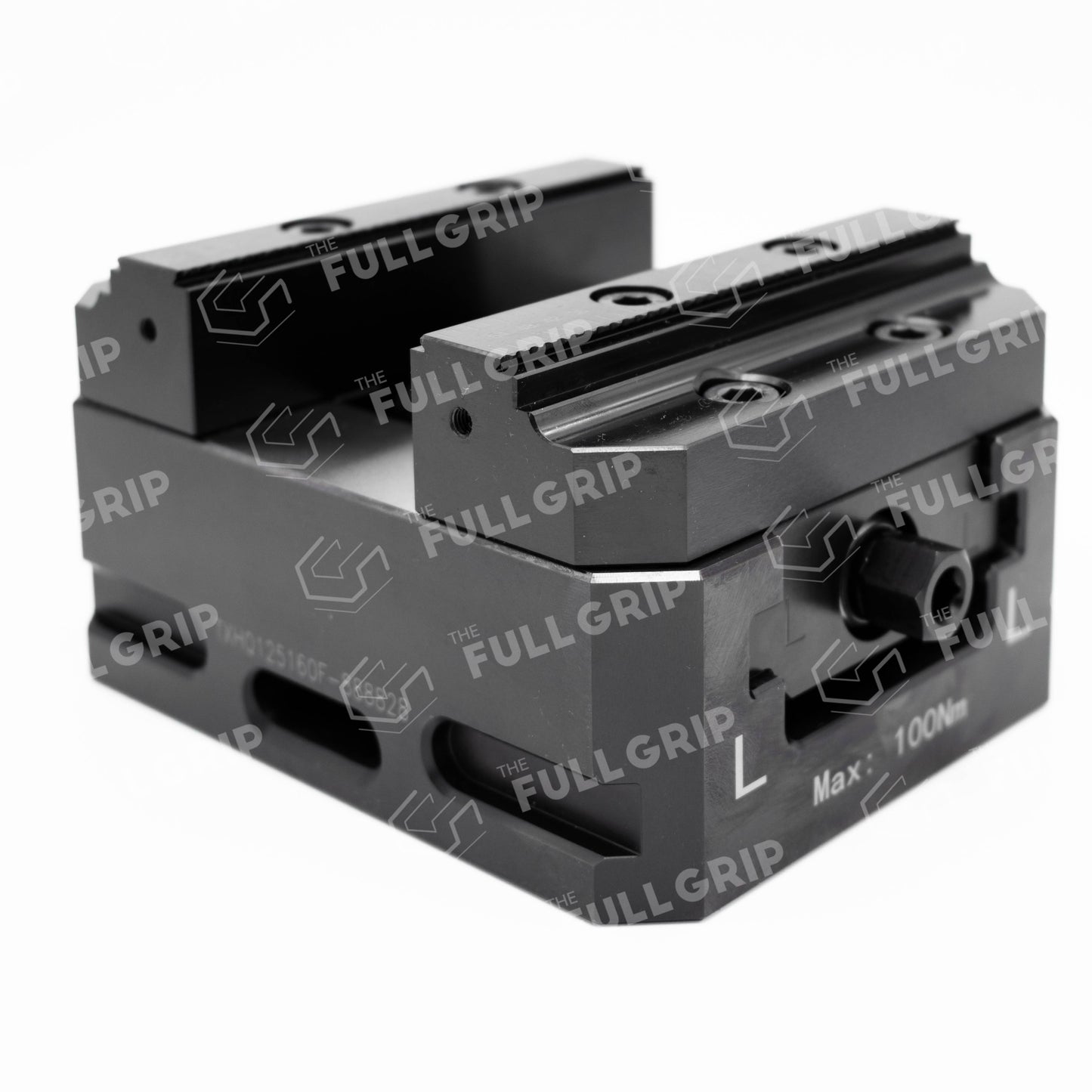

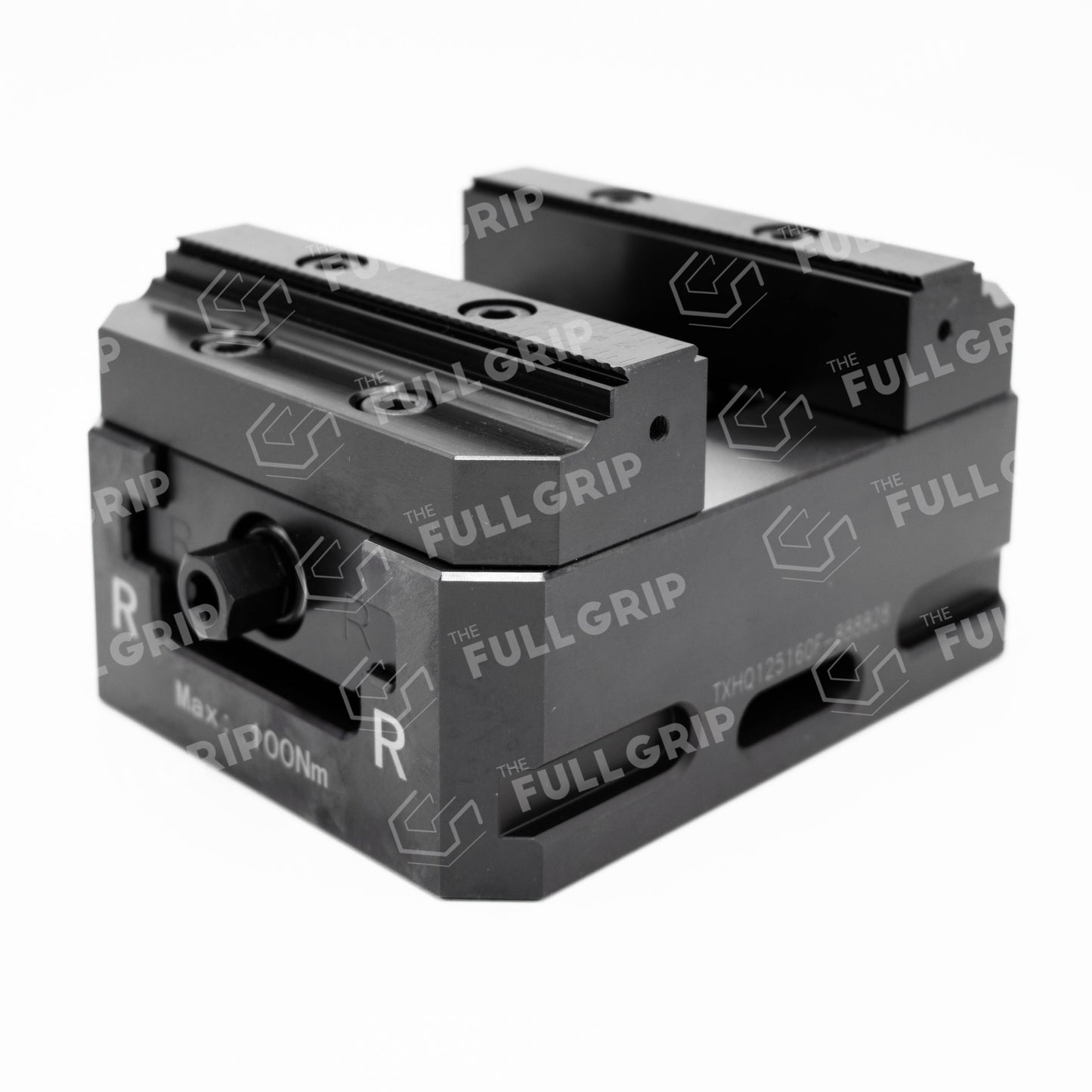

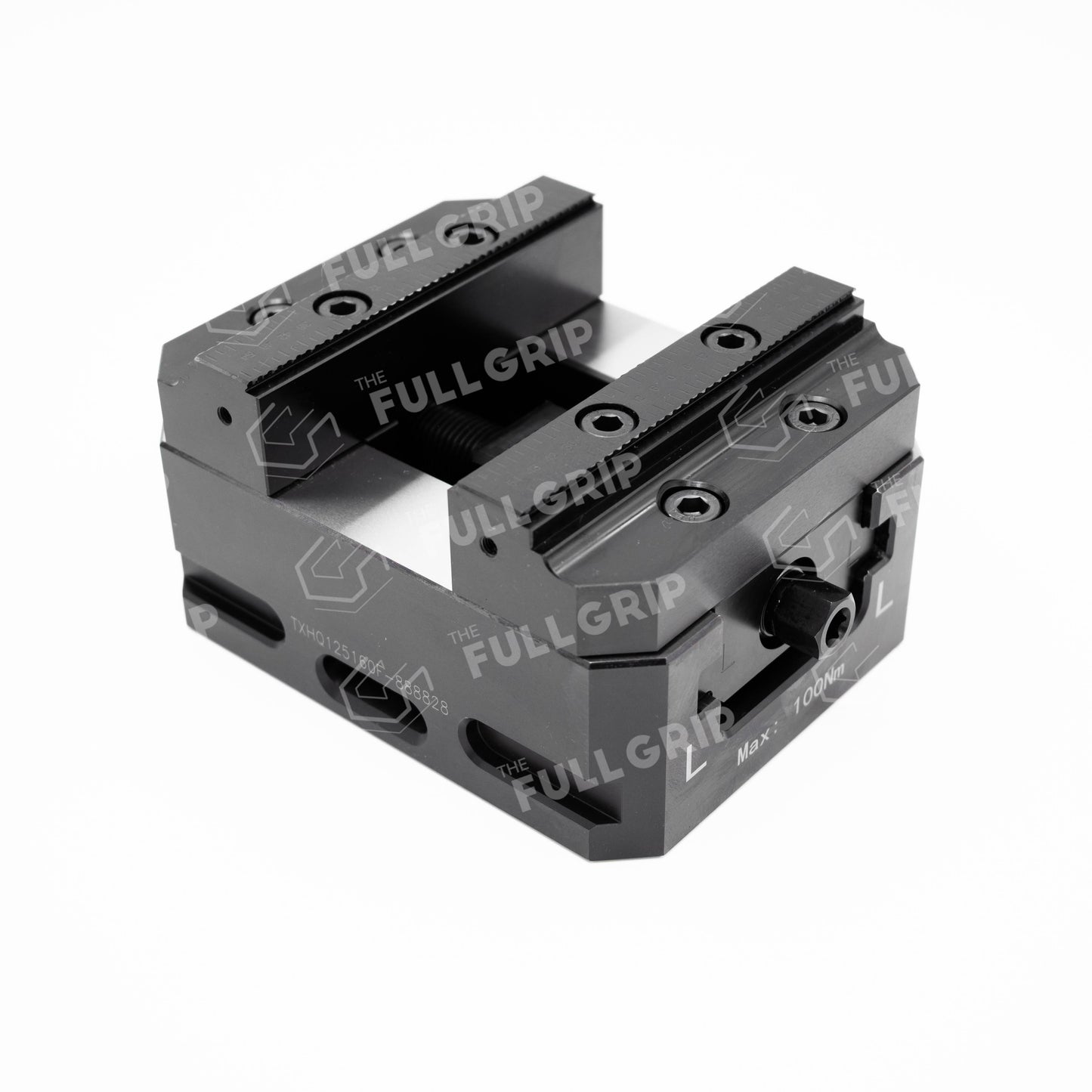

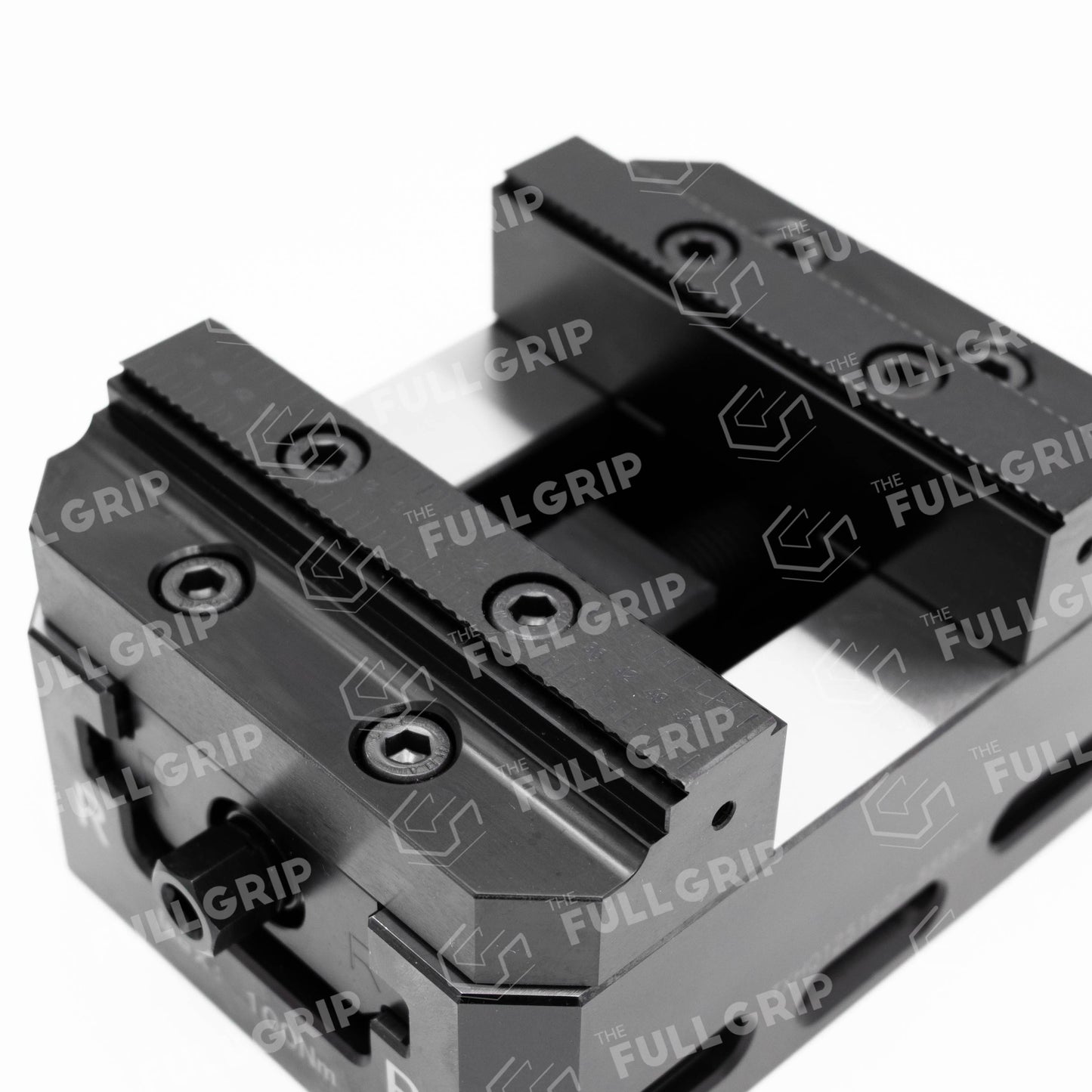

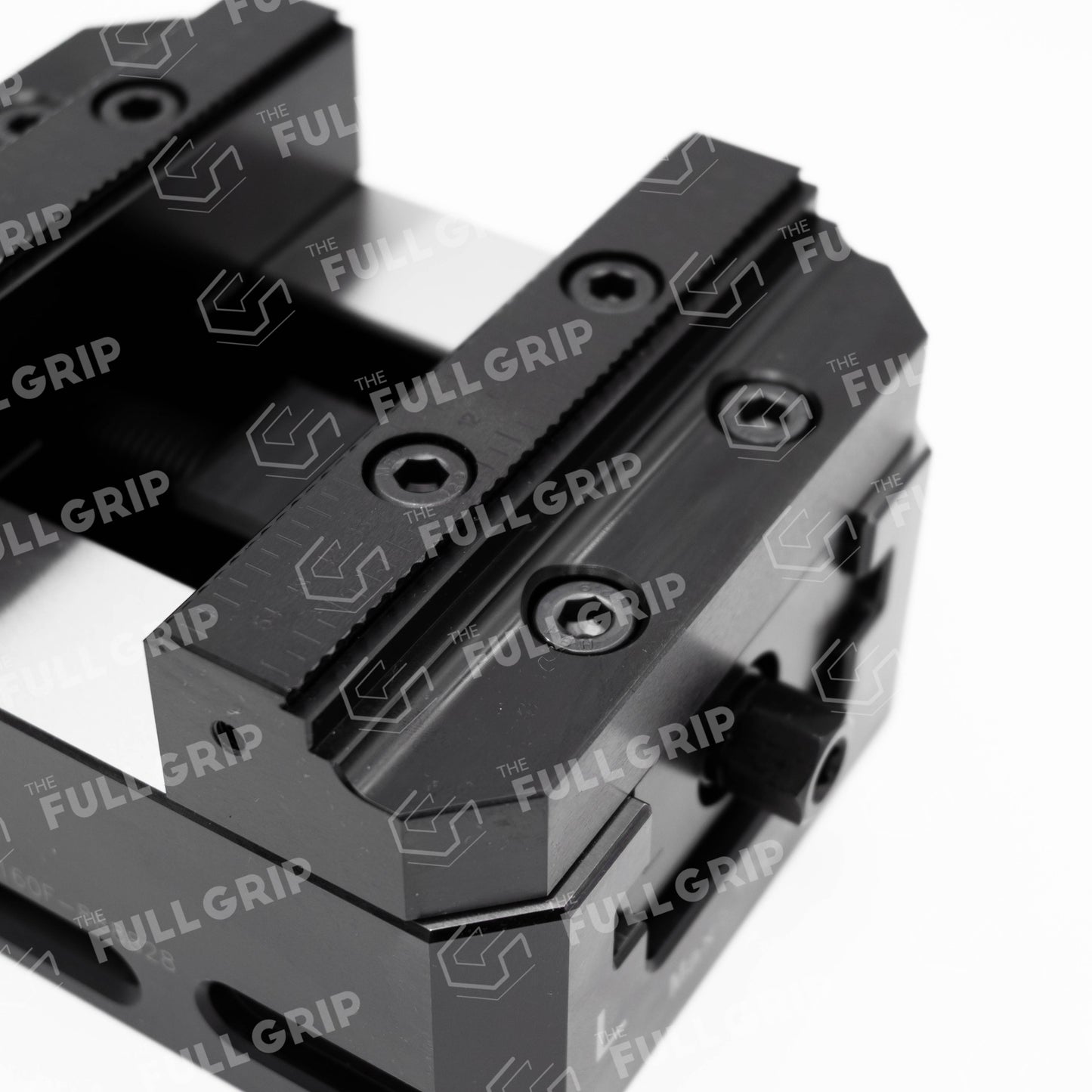

The Full Grip - Self Centering Vice - 125 x 160 - Removable Jaws

The Full Grip – Self Centering Vice

125 x 160 mm | Removable Jaws
High-Precision Centreline Clamping for 3- and 5-Axis Machining

Engineered for precision and repeatability, the Full Grip – Self Centering Vice – 125 x 160 is built for machinists who demand quick setups, high holding power, and dead-on centreline accuracy. Its symmetrical clamping motion keeps parts perfectly centered, reducing the need for offsets and ensuring optimal tool clearance in 5-axis and multi-axis machining.

With a compact 125 mm jaw width and 160 mm clamping range, this vice is ideal for medium-sized components. The removable jaws provide ultimate flexibility — swap out to soft jaws, machinable inserts, or custom grippers in seconds to suit any job.

Key Features:

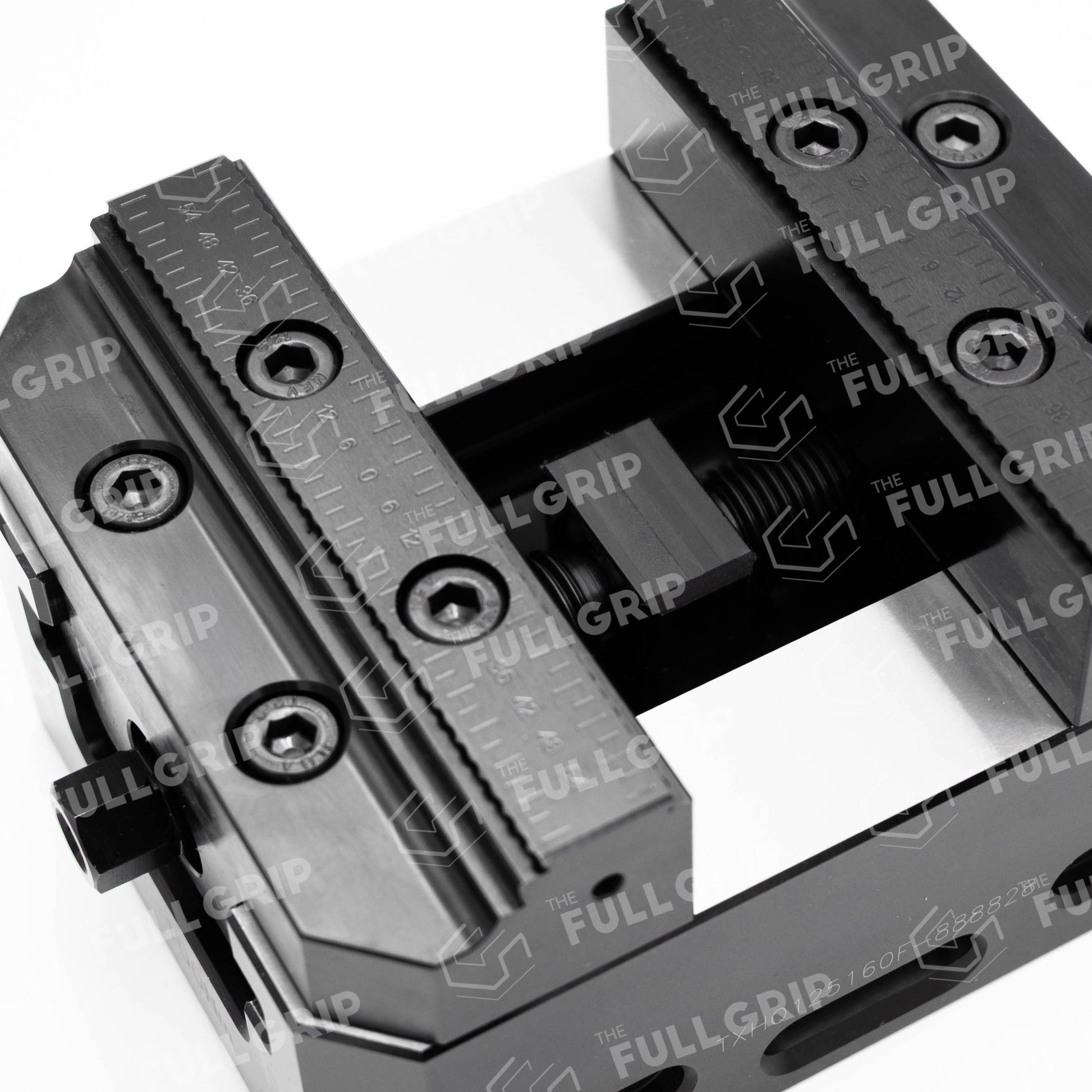

• Self-Centering Action:
  Automatically centers the workpiece with dual-motion jaws — ideal for symmetrical machining and consistent part alignment.

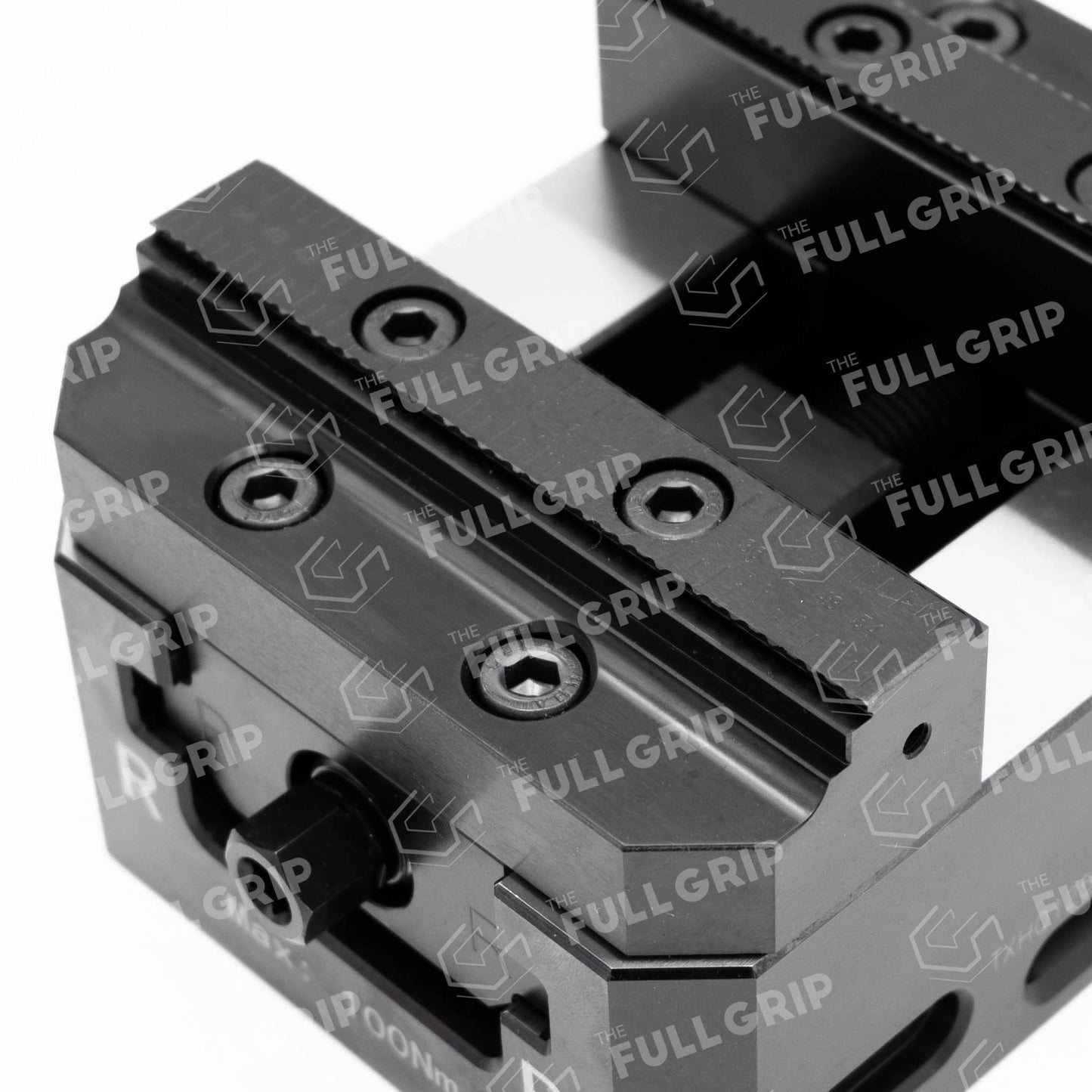

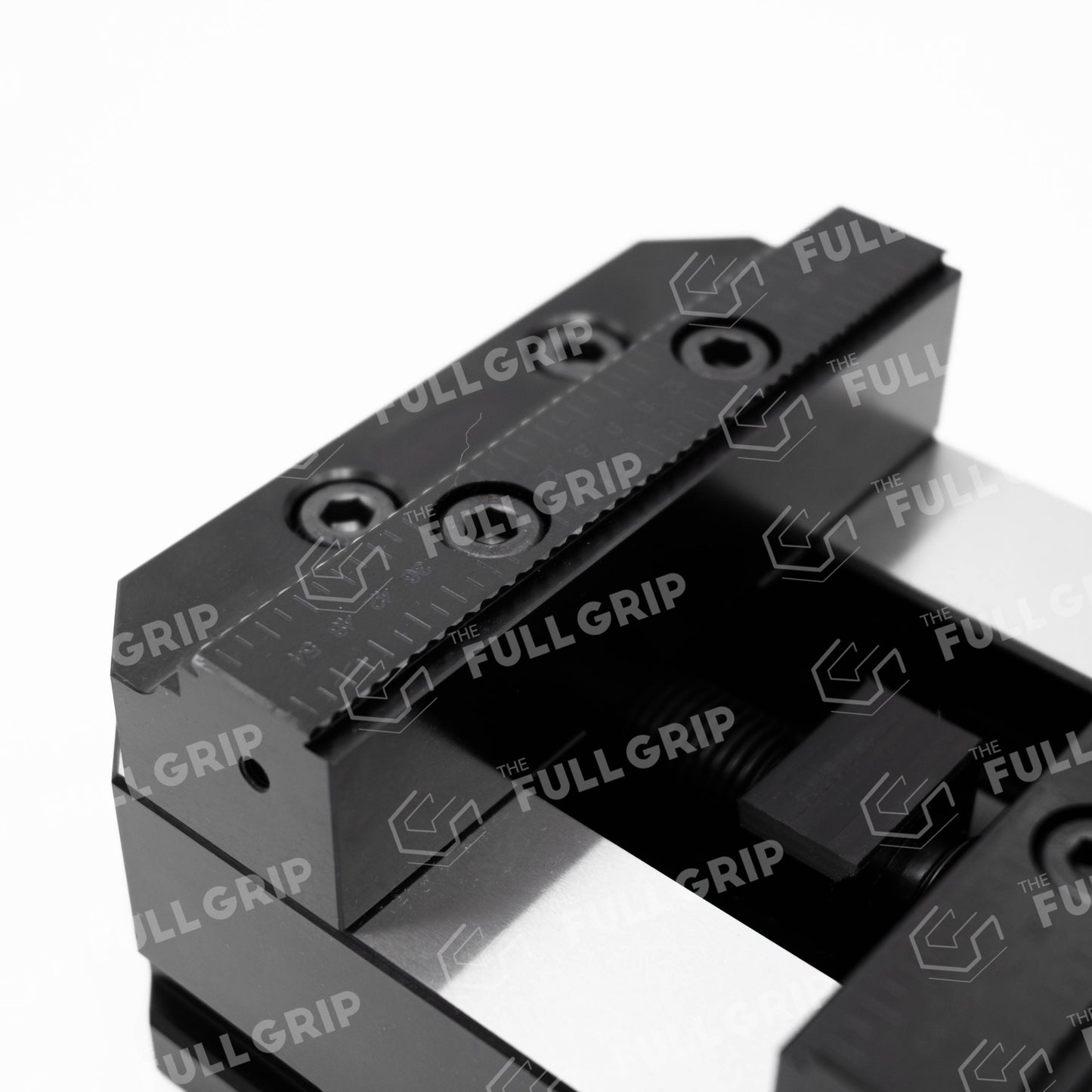

• Removable Jaws:
  Quick-change system lets you swap between hardened steel jaws, soft jaws, or custom profiles without disassembling the vice.

• Compact & Rigid:
  125 mm jaw width and robust body offer high rigidity while fitting neatly on smaller machine tables or tombstones.

• High Repeatability:
  Precision-ground body and guided slideways maintain positional accuracy to ≤ 0.01 mm across repeated cycles.

• Optimised for 5-Axis:
  Low-profile design with excellent tool clearance for multi-face access and tight toolpaths.

• Zero-Point Ready:
  Can be adapted to zero-point systems using pull studs for fast changeovers and modular integration.

Technical Specifications:

• Clamping Range: 0–160 mm

• Jaw Width: 125 mm

• Jaw Type: Removable / interchangeable

• Body Material: Hardened tool steel

• Surface Finish: Ground

• Repeatability: ≤ 0.01 mm

• Mounting: Bolt-down or zero-point adaptable

• Applications: CNC milling, 5-axis machining, modular fixturing, precision part production

DIMENSIONS

160 x 125 x 88. 7mm
