The Full Grip - Self Centering Vice - 125 x 210 - Removable Jaws

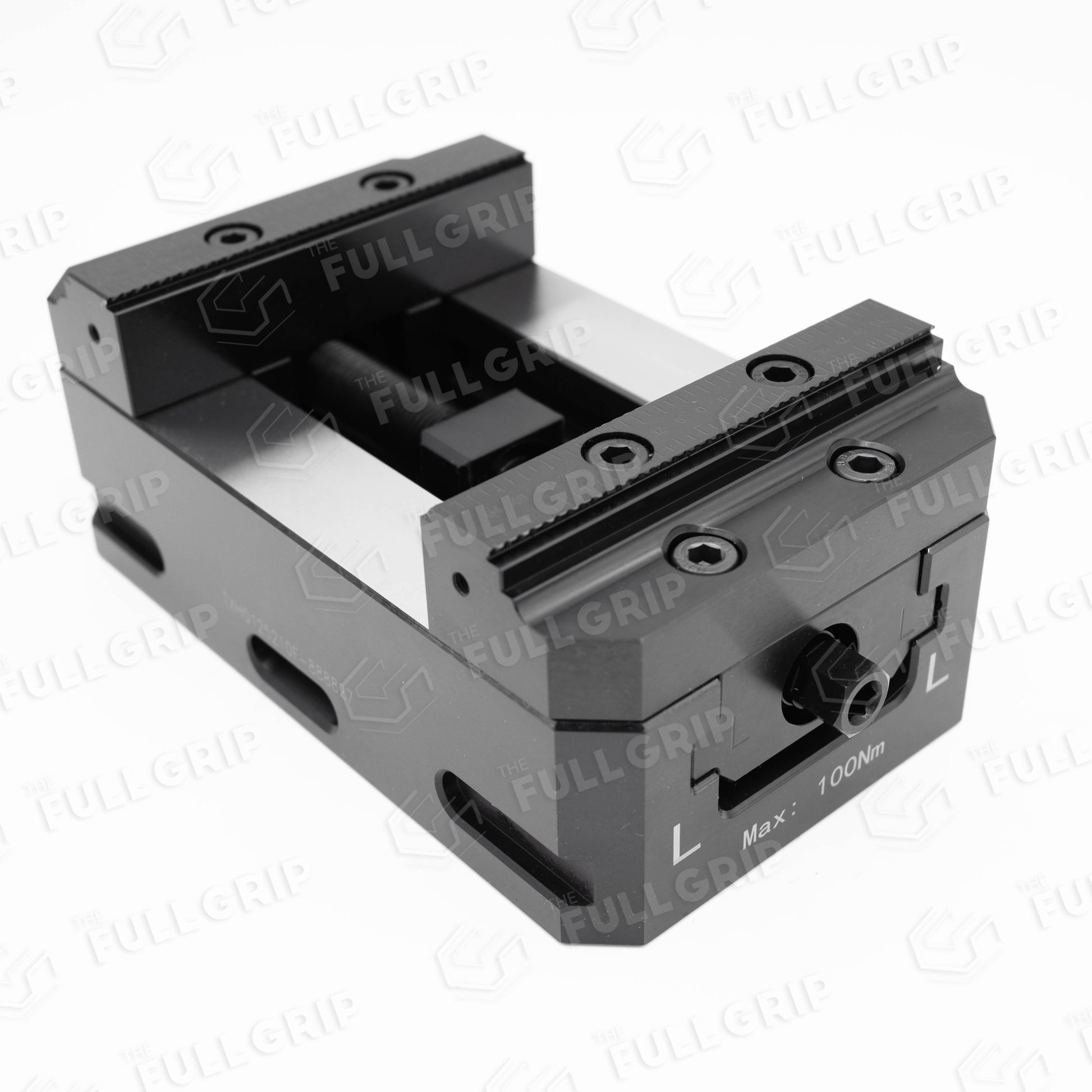

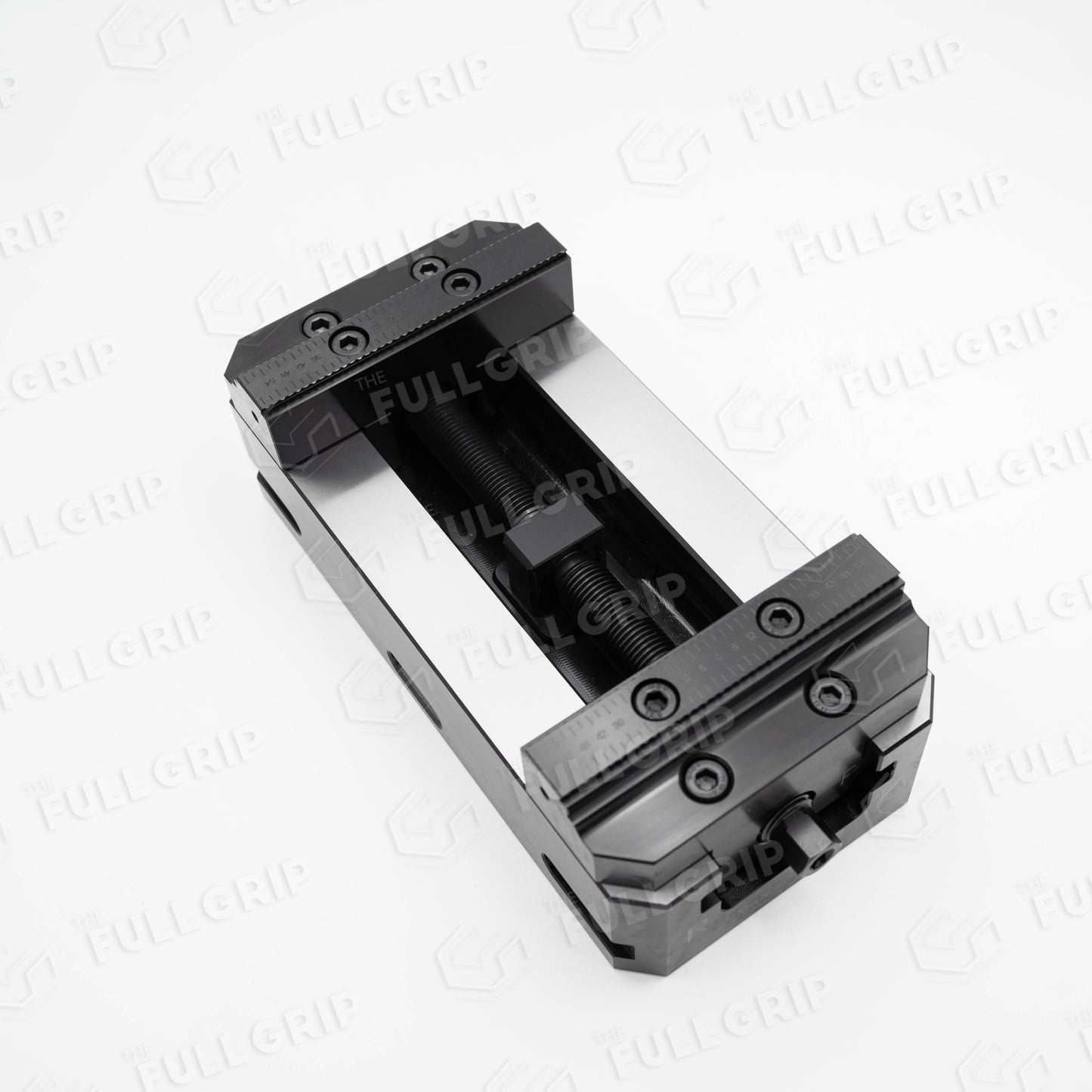

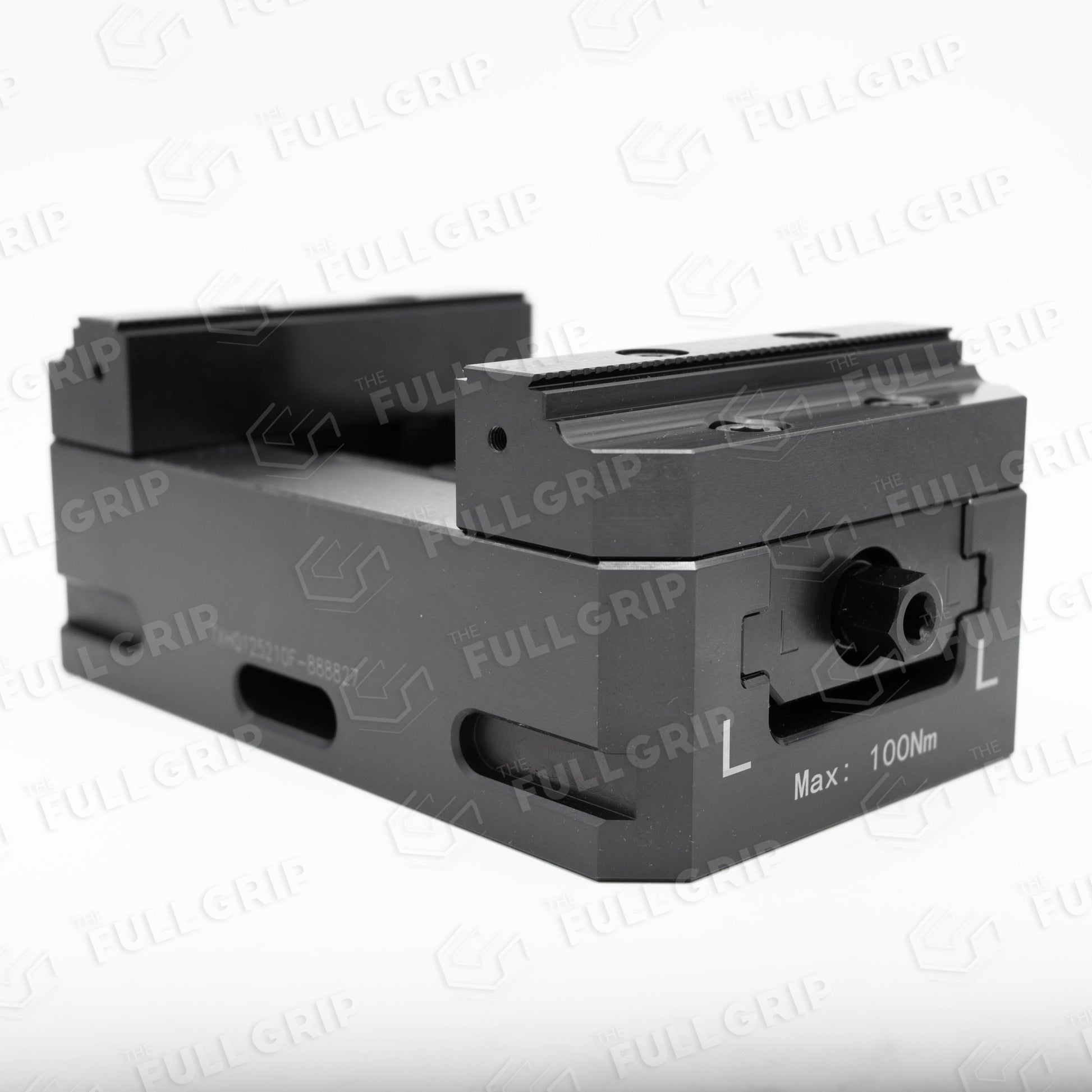

The Full Grip – Self Centering Vice

125 x 210 mm | Removable Jaws
Precision Workholding for Versatile and Repeatable Clamping

The Full Grip – Self Centering Vice – 125 x 210 is built for high-accuracy clamping in demanding 3-axis and 5-axis CNC machining environments. With a larger 210 mm clamping range and 125 mm jaw width, this vice handles medium to large parts with consistent centerline alignment — perfect for symmetrical machining, multi-face access, and automated setups.

Equipped with removable jaws, this model offers full adaptability to suit a range of components and materials. Whether you're switching between soft jaws for delicate parts or custom jaws for complex geometries, changeover is quick and seamless.

Key Features:

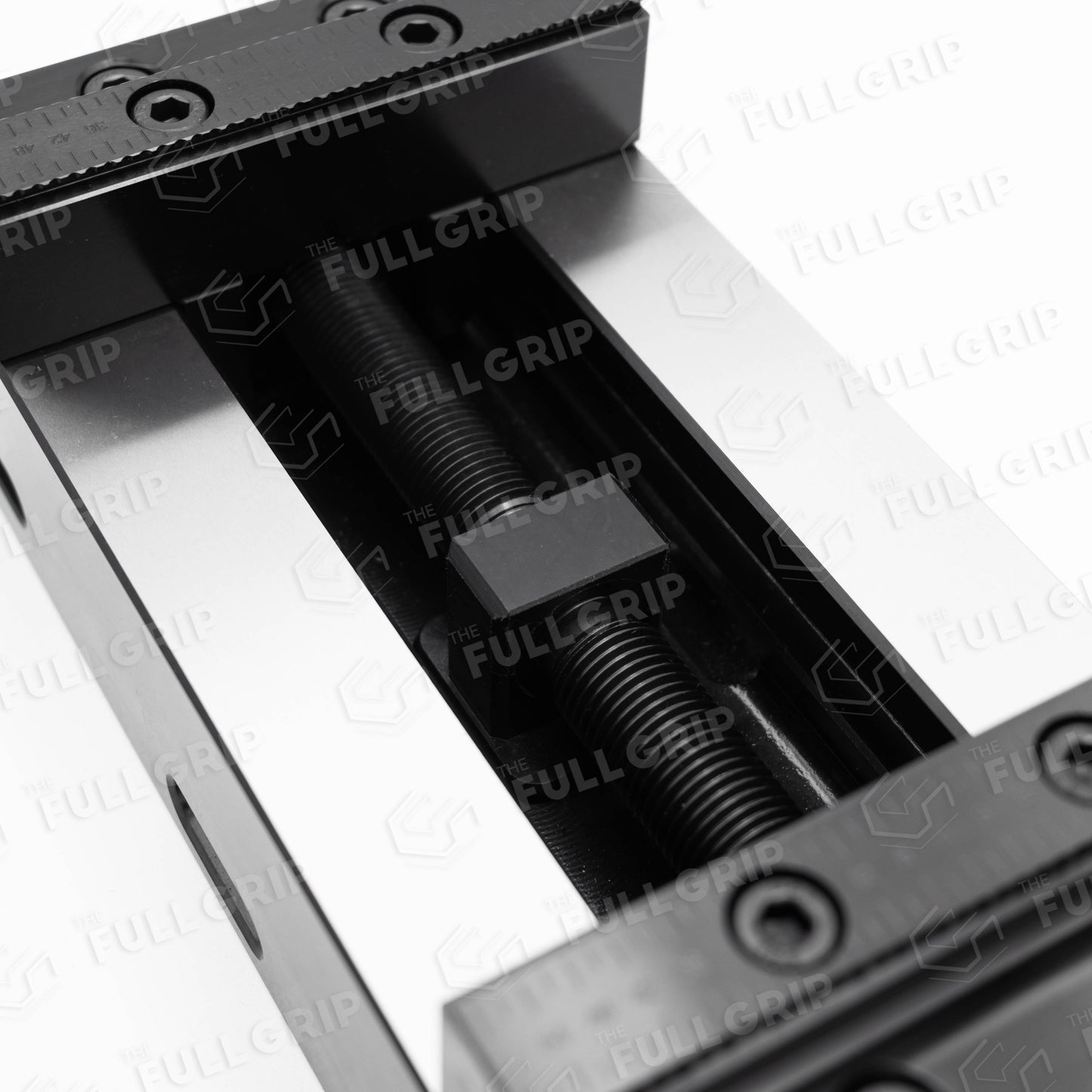

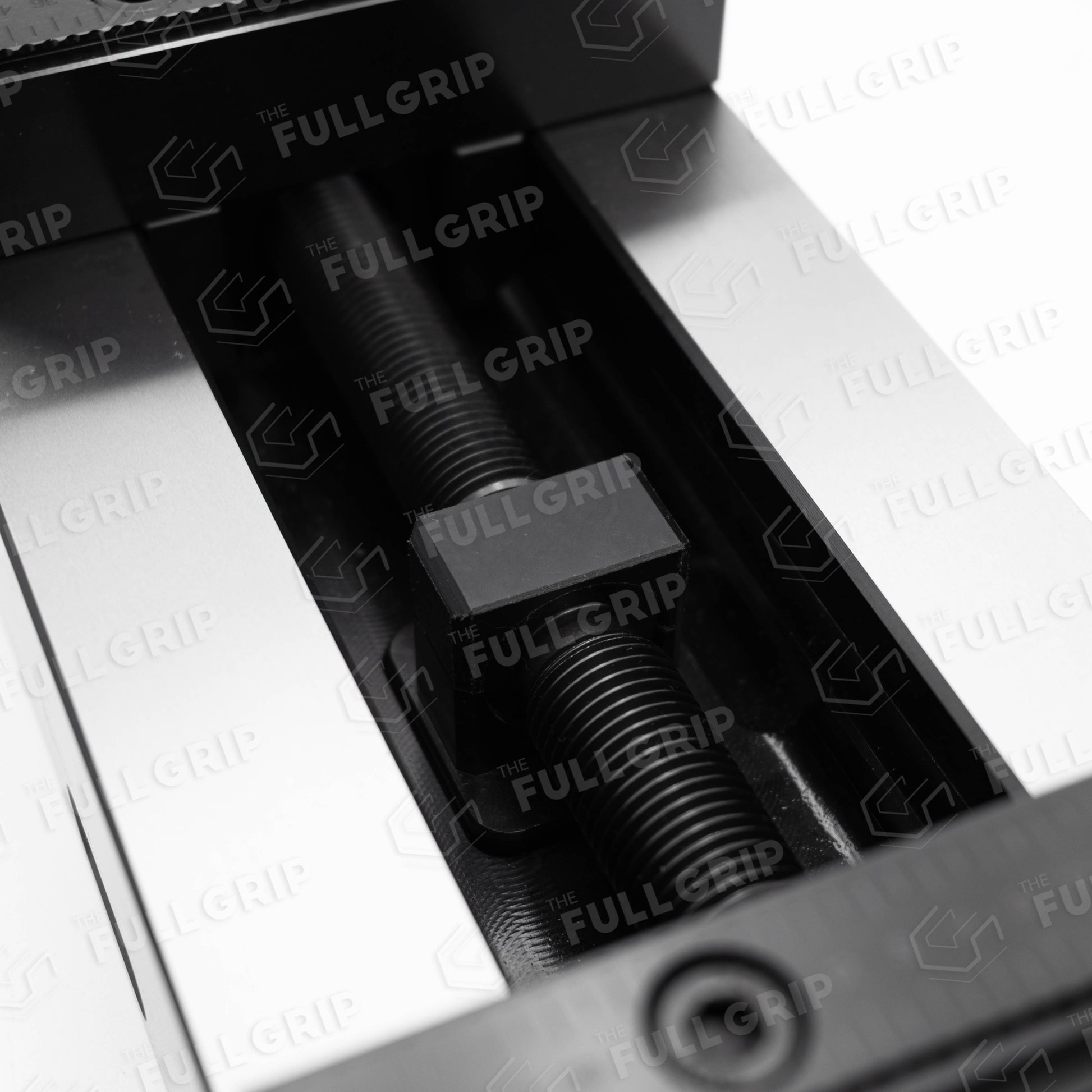

• Self-Centering Mechanism:
  Both jaws move inward and outward simultaneously to ensure the workpiece is always clamped on true center — ideal for symmetrical milling, round parts, and 5-axis machining.

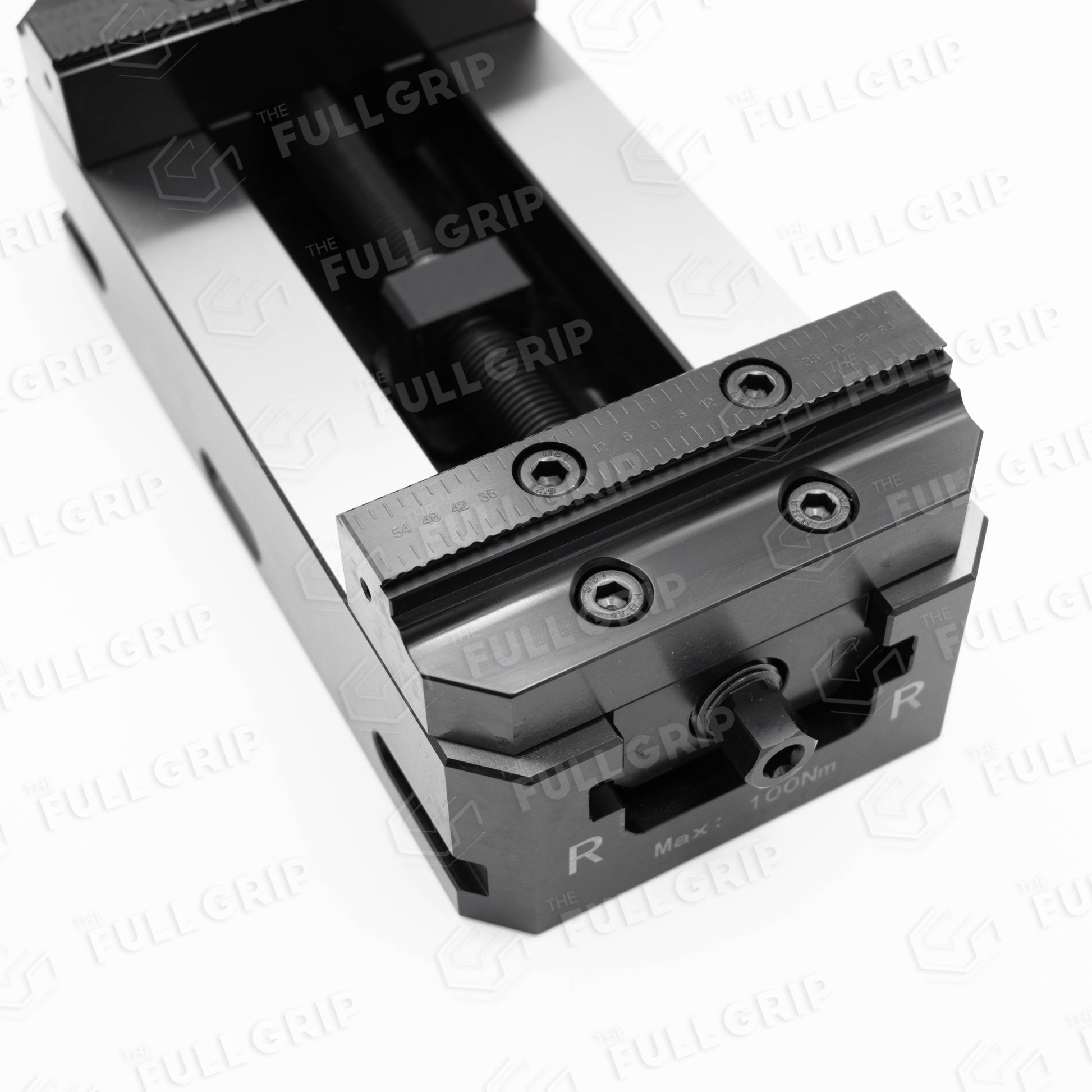

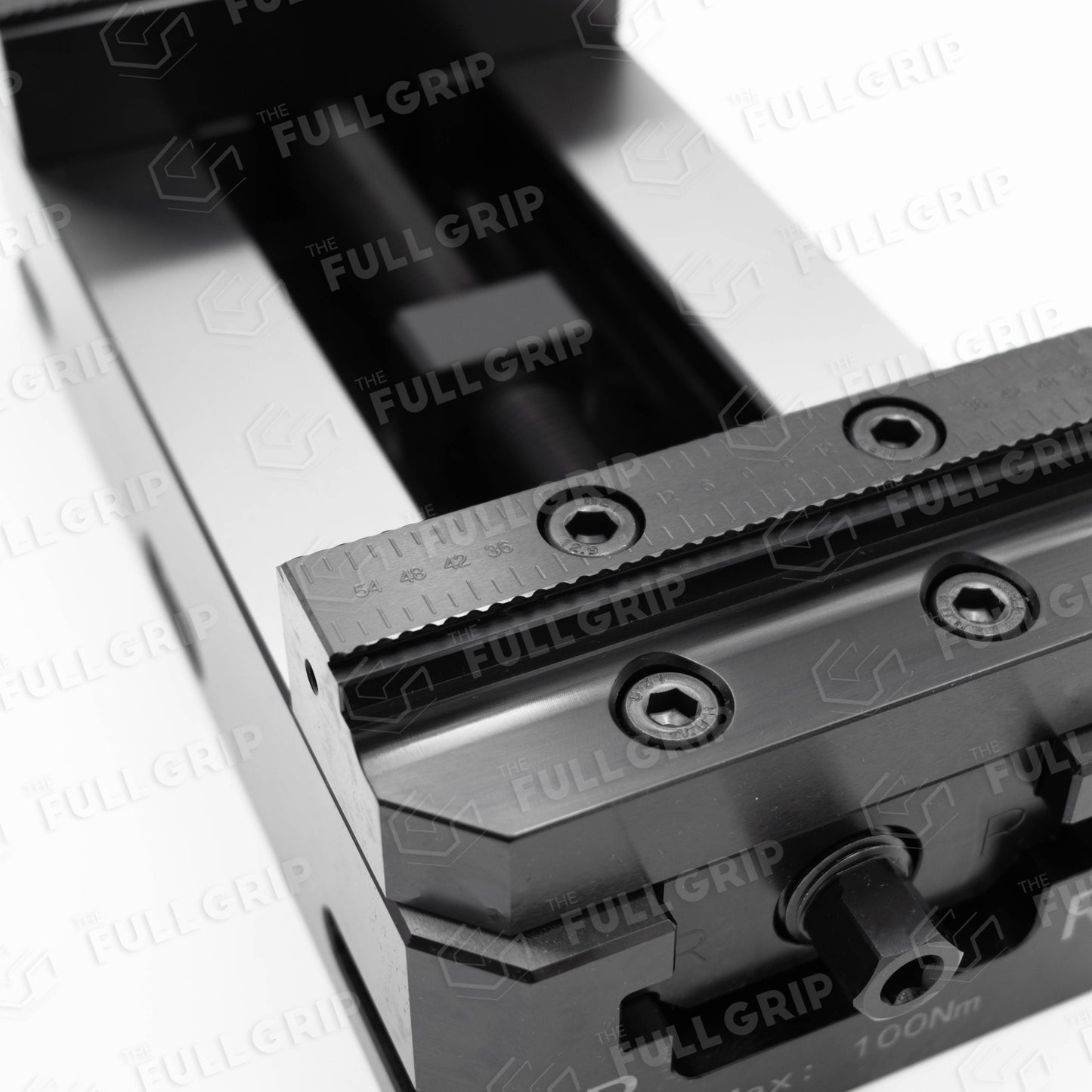

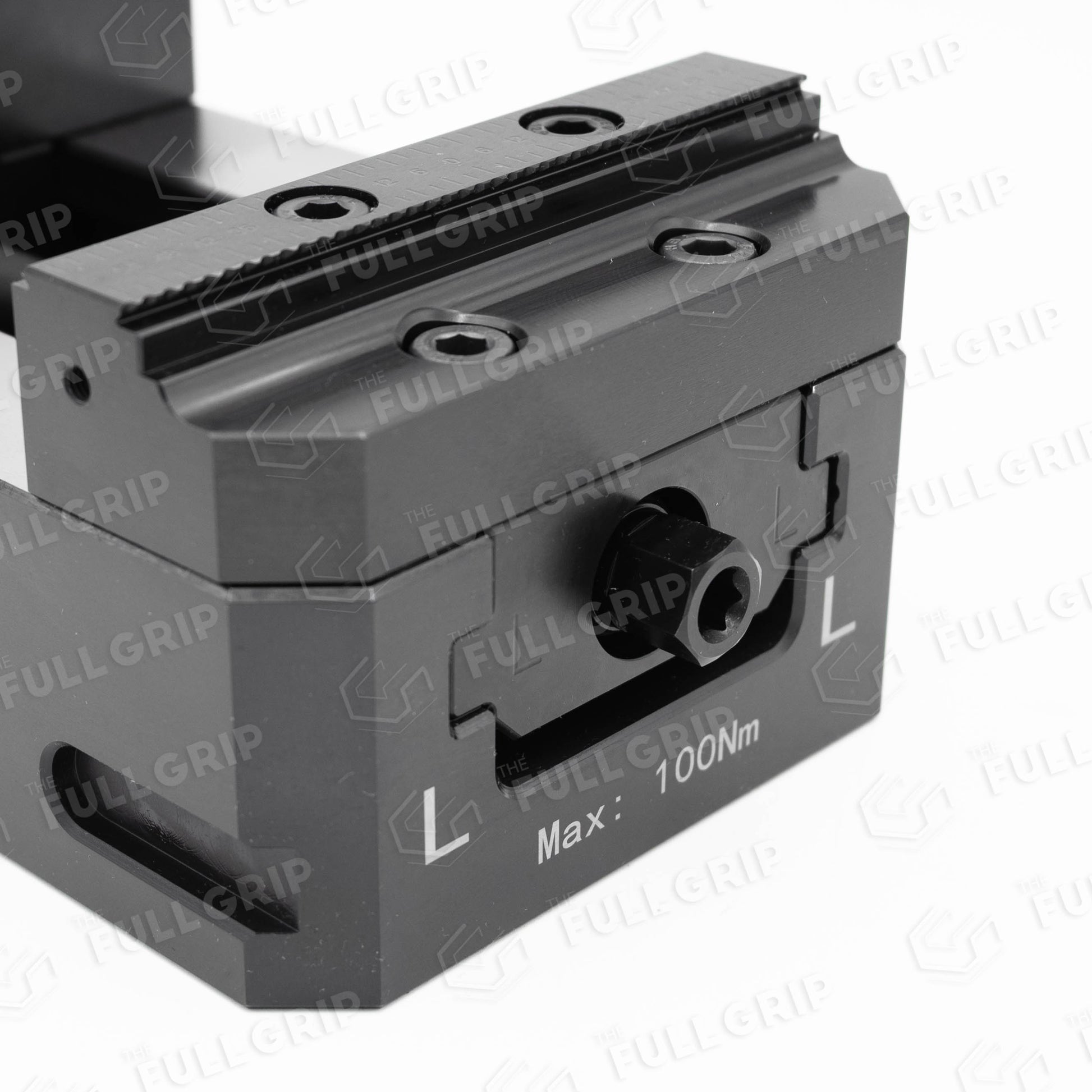

• Removable / Interchangeable Jaws:
  Hardened steel jaws included; easily swap to custom or soft jaws depending on the task — no tools required for jaw changeover.

• Large Clamping Range:
  Accommodates parts up to 210 mm wide, offering versatility for prototyping, batch work, or varied component sizes.

• Rigid & Compact Body:
  Designed with strength in mind, yet low-profile enough for maximum tool clearance in tight machining envelopes.

• High Repeatability:
  Ground surfaces and tight-tolerance internal guides ensure positioning accuracy within ≤ 0.01 mm across multiple cycles.

• Modular Compatibility:
  Mounts directly to machine tables, subplates, or zero-point systems via pull studs or bolt holes.

Technical Specifications:

• Clamping Range: 0–210 mm

• Jaw Width: 125 mm

• Jaw Type: Removable, interchangeable

• Material: Hardened tool steel

• Surface Finish: Precision ground

• Repeatability: ≤ 0.01 mm

• Mounting: Bolt pattern and zero-point compatible

• Applications: CNC machining, 5-axis milling, automation cells, modular fixturing setups

DIMENSIONS:

210 x 125 x 88. 7mm
